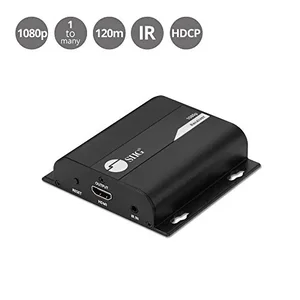

CE-H24U11-S1 - Siig AC CE-H24U11-S1 HDMI HDbitT Over Cat6 Extender w IR Receiver Brown Box

Transport protocol:
HDbitT Compliant with HDMI 1.3 and HDCP 1.2 Supported connections:
1-to-1 connection:
up to 120m signal extension
1-to-many connection (splitter):
Display mode: Mirror
Requires HDMI Over Cat6 Extender with IR - 120m, part CE-H23T11-S1, sold separately
Requires dedicated Gigabit Ethernet switch Supports 2-Ch PCM stereo audio Supports IR passback with 20KHz to 60KHz frequency Supports full frequency IR signal from 20KHz to 60KHz Resolution:
480p / 720p / 1080i / 1080p at 60Hz Product:
Connectors:
1x 19-pin HDMI, Type A, Female, Output
1x 3.5mm jack, IR Receiver, Input
1x 8-pin, RJ45, HDbitT signal, input
1x Reset button
1x Power jack Power adapter:
Input: 100-240V / 50-60Hz
Output: DC 5V/1A
UL listed: E335801 / Level: VI Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing) Certifications/Standards:
FCC, CE, RoHS Item Dimension (L"xW"xH")
5 x 6 x 1

Weight
1 lb

Warranty Information
2 years
