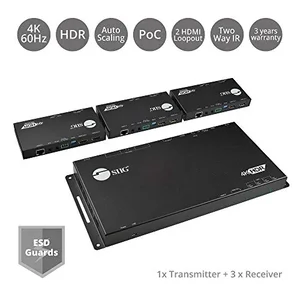

Siig CE-H24N11-S1 AC CE-H24N11-S1 HDMI 4K HDR 1x4 Splitter HDBaseT Extender w Auto-scaling

HDMI Compliance:
HDMI 2.0a Video bandwidth:
Single-link 600MHz (18Gbps) Video support:
HDR 4Kx2K at 60Hz (4:2:0 10-bit) / 4Kx2K at 60Hz (4:4:4 8-bit) Resolution up to 3840x2160 at 60Hz
HDCP Compliance:
HDCP bypass Auto equalization
Bi-directional IR pass-through
RS-232 Pass-thru:
Up to 115,200bps Product:
Transmitting unit (TX):
Connectors:
1x 19-pin HDMI, Type A, Female, Input
1x 3.5mm jack, IR, Input/ 1x 3.5mm jack, IR, Output
1x Power jack
4x 8-pin, RJ45, HDMI signal, Output
2x 19-pin HDMI, Type A, Female, Loop-out
1x Dip Switch, EDID management
1x RS-232, Input/Output
Micro-USB, Firmware update
Receiving unit (RX):
Connectors:
1x 8-pin, RJ45, HDMI signal, input
1x 3.5mm jack, IR, Input/ 1x 3.5mm jack, IR, Output
1x RS-232, Input/Output
1x 3-Pin dip Switch, EDID management
2x 19-pin HDMI, Type A, Female, Output
Housing material:
Metal ESD protection:
Human body model - +/-15kV (air-gap) and +/-8kV (contact) Supported Cable Length (CAT5):
1080p at 60Hz: 198ft (60m)
4K at 60Hz: 114ft (35m)
Power adapter:
Input: 100-240VAC, 50/60 Hz
Output DC12V/7.5A
UL:E163743 Class:VI
Environmental conditions:
Operating temperature: 32 to 104^oF (0 to 40^oC)
Storage temperature: -4 to 140^oF (-20 to 60^oC)
Relative humidity: 20-90% RH no condensation
Certifications/Standards:
FCC, CE, RoHS TAA Compliant
Item Dimension (L"xW"xH")
13 x 1 x 6
Weight
3.06 LB
Warranty Information
3 years
