Technical Specifications
- 1 HDMI input and 1 VGA input with auxiliary audio input
- Output resolution selectable between 720p and 4Kx2K at 30Hz YUV 4:4:4
- Transmission distance:
4Kx2K: up to 131ft (40m)
1080p: up to 230ft (70m)
- Supports volume control via push buttons
Automatically switch based on video sensing
- Supports RS232 pass-through to communicate control signal between the scaler and the connected HDBaseT matrix or receiver
- Allows the connected source and display to be controlled via bi-directional IR pass-through
- Supports bidirectional Power over HDBaseT (PoH)
- Supports advanced built-in EDID management
- Metal housing
- Product:
Color: Black

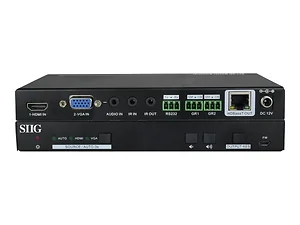

Connectors:
-1x 19-pin HDMI, Type A, Female, Input
-1x 15-pin VGA D-sub, Female, Input
-1x 3.5mm jack, Audio, Input
-1x 19-pin HDMI, Type A, Female, Output
-1x 8P8C RJ-45, HDBaseT Signal, Output
-1x 5-pin, Micro USB, Firmware update
-1x 3-pin terminal block, RS-232, Control
-1x 3.5mm jack, IR receiver, Input
-1x 3.5mm jack, IR emitter, Output
-1x Power jack
- Power adapter:
Input: 100-240VAC, 50/60 Hz
Output: DC 12V/2A
- Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: -4 to 131 degrees F
Relative humidity: 10 to 90% RH (non-condensing)
- Certifications/Standards:
FCC, CE, RoHS
Item Dimension(L inchxW inchxH inch)
10 x 11 x 3
Weight
3.00lb
Warranty Information
3 years
