CE-H23A11-S2 - Siig FULL HD QUALITY CE-H23A11-S2, EXTENDS HIGH DEFINITION 1080P HDMI SIGNALS FROM A

General InformationExtends high definition 1080p HDMI signals from a source device to a display device through economical CAT5e/6 cabling up to 120 meters using advanced HDBitT over IP technology Extends HDMI signals with stereo audio to a remote display over UTP CAT5e/6 cabling up to 120 meters Works as a scalable TX/RX Matrix over dedicated IP network, allows up to 256 total units, limited to 100 transmitters. Additional transmitter units (part# CE-H23B11-S1) and receiver units (part# CE-H23C11-S1) sold separately Supports up to 1080p @60Hz video resolution to deliver stunning and crystal clear images Supports IR pass back function to control the source device from RX location Supports computer control software to select and switch between source devices (Matrix only) Supports HDbit-T protocol with H.264 compression over IP HDMI output on the transmitter allows you to monitor the HDMI signal at the source location RS-232 pass-through connection to control RS-232 enabled devices at either direction Technical InformationConnectivity Technology: WiredNumber of Input Devices Supported: 1Number of Output Devices Supported: 1Maximum Operating Distance: 393.70 ftVideoGraphics Modes: Full HDMaximum Video Resolution: 1920 x 1080Interfaces/PortsNetwork (RJ-45): YesHDMI In: YesHDMI Out: YesSerial Port: YesNumber of Network (RJ-45) Ports: 2Number of HDMI Inputs: 1Number of HDMI Outputs: 2Media & PerformanceMedia Type Supported: Twisted PairTwisted Pair Cable Standard: Category 6Physical CharacteristicsColor: BlackTransmitter Height: 0.94"Transmitter Width: 3.27"Transmitter Depth: 5.24"Form Factor: Rack-mountableTransmitter Weight (Approximate): 1.20 lbMiscellaneousPackage Contents: HDMI Over IP Extender / Matrix with IR - Kit 2 x Power Adapters IR Blaster Extension Cable and IR Receiver Extension Cable 4 x Mounting Ears 8 x Screw Kit Remote Control User Reference Guide Environmentally Friendly: YesEnvironmental Certification: RoHSCountry of Origin: ChinaWarrantyLimited Warranty: 2 Year

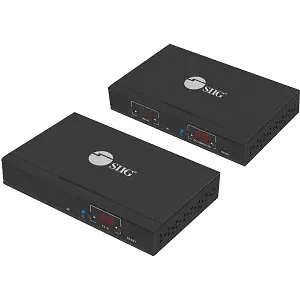

The Siig CE-H23A11-S2 is an HDMI over IP extender kit designed for extending Full HD 1080p HDMI signals, along with stereo audio, over economical CAT5e/6 cabling. This system utilizes HDBitT over IP technology with H.264 compression to transmit signals up to 120 meters. It is suitable for IT professionals and businesses requiring long-distance video distribution in environments like conference rooms, digital signage, or control centers. The kit includes both a transmitter and receiver unit, and it can function as a scalable TX/RX matrix over a dedicated IP network, supporting up to 256 total units with a limit of 100 transmitters. This allows for flexible video routing and distribution. The system also supports IR pass-back for source device control from the receiver location and RS-232 pass-through for controlling RS-232 enabled devices. An HDMI output on the transmitter unit enables local monitoring of the source signal.
