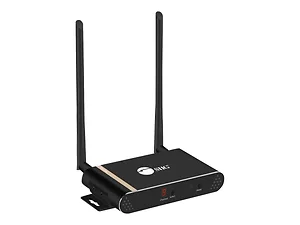

CE-H23811-S1 - Siig Dual Antenna Wireless Transmit

Compliant with HDMI 1.3 an HDCP 1.2 Wireless Technology:
5GHz 10 Channels:
Channel 0: 5.180 GHz (20MHz)
Channel 1: 5.220 GHz (20MHz)
Channel 2: 5.240 GHz (20MHz)
Channel 3: 5.240 GHz (40MHz)
Channel 4: 5.745 GHz (20MHz)
Channel 5: 5.765 GHz (20MHz)
Channel 6: 5.745 GHz (40MHz)
Channel 7: 5.765 GHz (40MHz)
Channel 8: 5.825 GHz (20MHz)
Channel 9: 5.805 GHz (20MHz) Supported Topology:
Additional transmitter (part number CE-H23811-S1) and receiver (part number CE-H23911-S1) purchase separately
Extender
1 Transmitter (TX) to 1 Receiver (RX)
Splitter
1 Transmitter (TX) to 2 Receivers (RX)
Switch
2 Transmitters (TX) to 1 Receiver (RX)
2 Transmitters (TX) to 2 Receivers (RX) Video Compression Technology:
H.264 Wireless latency:
<200ms Resolution:
480p / 720p / 1080i / 1080p at 60Hz Distance:
Up to 165ft (line of sight)
Note: The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions, and may be much less than the maximum HDMI cable length:
Up to 5m (Input and Output)

Supports 2-Ch PCM stereo audio
Supports full frequency IR signal from 20KHz to 60KHz Housing material:
Aluminum Housing color:
Black
Connectors:
1x 19-pin HDMI, Type A, Female ,Input
1x 19-pin HDMI, Type A, Female, Output
1x 3.5mm jack, IR Blaster
2x Antenna
1x Switch button
1x Power jack
1x Reset button Power adapter:
Input:
AC 100-240V / 50-60Hz Output:
DC 5V/2A UL Listed:
E335801 / Class VI Operating temperature:
32 to 122 degrees F Storage temperature:
14 to 140 degrees F Relative humidity:
0% to 90% RH (non-condensing) Certifications/Standards:
FCC, CE, RoHS Item Dimension (L inchxW inchxH inch)
6 x 8 x 4

Weight
2.00lb

Warranty Information
2 Years
