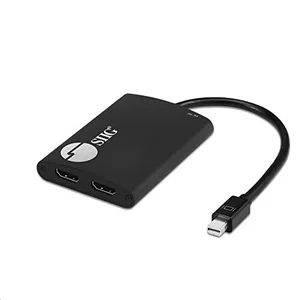

CE-DP0L11-S1 - Siig TECHNICAL SPECS MDP TO HDMI MST HUB, 21.6GBPS 7.1 SURROUND AUDIO MIRROR/ EXTEND A

Chipset:
STDP4320 Resolution:
Up to 3840x2160 at 30Hz Compliant with DisplayPort 1.2a specifications Supports 7.1 Ch audio up to 192KHz sampling rate Display Modes:
Mirror, Extended, Panoramic Video Wall Note: AMD Eyefinity or NVIDIA Surround technology graphics adapter is required to support Panoramic Video Wall mode Total Available Bandwidth 21.6Gbps (100%):
3840x2160 at 30Hz (40%) 2560x1600 at 60Hz (38%) 2560x1440 at 60Hz (35%) 1920x1200 at 60Hz (30%) 1920x1080 at 60Hz (22%) Note: Make sure the total combined resolution bandwidth among all displays does NOT exceed 100%. Product:
Mini DisplayPort cable (embedded): 12.6 inches Color:
Black Housing:
Aluminum Connector:
1x 20-pin, Mini DisplayPort, Male, Input
2x 19-pin, HDMI, Type A, Female, Output
1x 5-pin, Micro USB, Female, power Input (at least 5V/300mA from USB port) Micro USB power cable:
19 inches Environmental conditions:
Operating temperature:
32 to 122 degrees F
Storage temperature:
14 to 158 degrees F
Relative humidity:
20% to 90% RH (non-condensing) Certifications/Standards:
FCC, CE, RoHS TAA compliant Item Dimension (L inchxW inchxH inch)
1 x 1 x 1

Weight
1.00 lb

Warranty Information
3 Years
