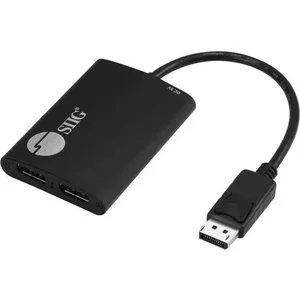

CE-DP0H11-S1 - Siig TECHNICAL SPECS DP TO DP MST HUB, 21.6GBPS 7.1 SURROUND AUDIO MIRROR/ EXTEND AND

19 Available
Condition: New

$79.52  $107.35
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

MST SPLITTER

Expert Overview

The Siig CE-DP0H11-S1 is a DisplayPort 1.2a MST Hub designed for business and IT professionals requiring multi-monitor DisplayPort connectivity from a single source. This adapter facilitates the expansion of a desktop or laptop's display output, supporting resolutions up to 3840x2160 at 30Hz across two DisplayPort monitors. It enables various display modes including Mirror, Extend, and Panoramic video wall, catering to diverse professional setups such as workstations, control rooms, or digital signage applications. The hub supports 7.1 channel audio up to a 192kHz sampling rate and offers a total bandwidth of 21.6Gbps. It is powered via a Micro USB input, requiring at least 5V/300mA. This device is suitable for environments needing to optimize display real estate and manage multiple screens efficiently, provided the source system has a DisplayPort 1.2 MST output and a compatible GPU.

Technical Specifications

Chipset:
STDP4320
Maximum resolution up to 3840x2160 at 30Hz
Compliant with DisplayPort 1.2a specifications
Supports 7.1 Ch audio up to 192kHz sampling rate Display Modes:
Mirror, Extend, Panoramic video wall Note:
AMD Eyefinity or NVIDIA Surround technology graphics adapter is required to support Panoramic Video Wall mode Total Bandwidth 21.6Gbps (100%): 3840x2160 at 30Hz (40%), 2560x1600 at 60Hz (38%),2560x1440 at 60Hz (35%), 1920x1200 at 60Hz (30%), 1920x1080 at 60Hz (22%) Note:
Make sure the total combined resolution bandwidth among all displays DOES NOT exceed 100%. Product:
DisplayPort cable (embedded):
12.6 inches Color:
Black Housing:
Aluminum Connector:
1x 20-pin, DisplayPort, Male, Input
2x 20-pin, DisplayPort, Female, Output
1x 5-pin, Micro USB, Female, power Input (at least 5V/300mA from USB port) Micro USB power cable:
19 inches Environmental conditions:
Operating temperature:
32 to 122 degrees F Storage temperature:
14 to 158 degrees F Relative humidity:
20% to 90% RH (non-condensing) Certifications/Standards:
FCC, CE, RoHS
TAA compliant

System Requirements
Desktop or laptop computer with an available DisplayPort 1.2 MST output
AMD Eyefinity or NVIDIA Surround technology graphics adapter is required to support Panoramic Video Wall mode
Requires GPU / graphics card to support at least 2 external displays to use both video ports at the same time with extended mode
USB power source (at least 5V/300mA) Note:
Mac OS does not support MST function and will only mirror the displays.

Package contents
1x2 DP 1.2 to DisplayPort MST Hub
Micro-USB power cable
User Reference Guide

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • TAA Compliant:
  • Country of Origin:
  • Siig
  • CE-DP0H11-S1
  • B084641DFB
  • 662774043289
  • New
  • 0.21 lbs
  • 9 X 0 X 6
  • Today - Aug 01, 2026
  • Nov 29, 2019
  • Yes
  • TW
Product Identifiers: Brand: Siig • Part #: CE-DP0H11-S1 • UPC: 662774043289 • ASIN: B084641DFB • Category: AV Cables & Adapters • TAA Compliant

Frequently Asked Questions

What are the maximum display resolution and refresh rate supported by this MST hub?

This MST hub supports a maximum resolution of 3840x2160 at 30Hz. It also supports other resolutions like 2560x1600 at 60Hz and 1920x1080 at 60Hz, with bandwidth considerations.

What are the system requirements for using the Panoramic Video Wall mode?

To utilize the Panoramic Video Wall mode, an AMD Eyefinity or NVIDIA Surround technology graphics adapter is required. Additionally, the GPU/graphics card must support at least two external displays.

Is this MST hub compatible with Mac OS?

No, Mac OS does not support the MST function. When used with Mac OS, the displays will only mirror, not extend or create a panoramic video wall.

What is included in the package with the MST hub?

The package includes the 1x2 DP 1.2 to DisplayPort MST Hub, a Micro-USB power cable, and a User Reference Guide.
