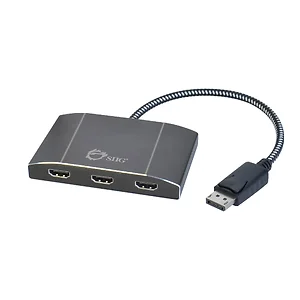

CE-DP0C12-S1 - Siig Accessory CE-DP0C12-S1 DisplayPort 1.2 to 3-Port HDMI MST Splitter Retail

Specifications
Chipset: STDP4320
Maximum resolution: 3840x2160 at 30Hz (4K)
Compliant with DisplayPort 1.2a specifications
Display Modes: Mirror, Extend, Video Wall (e.g., 2x2, Panoramic)
Note:
- Mirror mode: using a NVIDIA Surround technology graphics adapter is limited to 2 displays.
- Video Wall mode: requires either a AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter
Total Bandwidth 21.6Gbps (100%): 3840x2160 at 30Hz (40%), 2560x1600 at 60Hz (38%), 2560x1440 at 60Hz (35%), 1920x1200 at 60Hz (30%), 1920x1080 at 60Hz (22%)
Note: The total combined bandwidth among all connected HDMI displays must NOT be exceeded Color
Black Housing material
Aluminum Embedded DisplayPort cable length
7.9" (200mm) Connectors
1x 20-pin, DisplayPort, Male, Input
3x 19-pin, HDMI, Type A, Female, Output
1x 5-pin, Micro USB, Female, Input (for power only) Micro USB Power Cable
Micro USB (male) to USB Type-A (male)
Length: 3.3 ft (1m) Environmental conditions
Operating temperature: 32 to 140 degrees F
Storage temperature: -4 to 158 degrees F
Relative humidity: 5% to 85% RH (non-condensing) Certifications/Standards
FCC, CE, RoHS Item Dimension (L inchxW inchxH inch)
8 x 5 x 1 Weight
1.00 lb Warranty Information
2 Years
