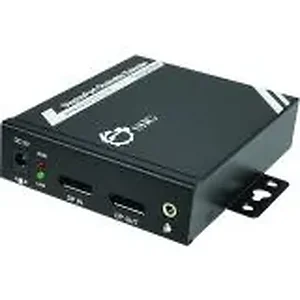

CE-DP0511-S1 - Siig DisplayPort to CAT5e Daisy Chain HD Extender Kit with RS-232 & IR

1.Chipset: TF-680

2.Each pair (TX and RX) extends the signals up to 100m (330 feet)
3.Compatible with HDTV: 480p, 720p, 1080i and 1080p at 60Hz

4.IR (Infrared remote) unidirectional enabled

5.Each receiver unit (remote) can be linked to another 2 receivers
6.Supports RS-232 control up to 115,200 bps

7.8KV ESD protection

8.Power/Link LED status indicators

9.No software or driver required
10.Metal housing with mounting mechanism

11.Use in conjunction with other SIIG models: CE-DP0611-S1 / CE-DP0811-S1 / CE-H22711-S1 / CE-H22911-S1 Transmitting unit (TX)
Dimensions: 4.53"(W) x 3.58"(H) x 1.10"(D)
Weight: 0.77 lbs
Color: Black
Housing material: Metal

Connectors :
1x 20-pin DisplayPort, Female, Input
1x 20-pin DisplayPort, Female, local output
1x 3.5mm jack, IR blaster
1x 3.5mm jack, RS-232, Input
1x 3.5mm jack, Audio, local output
1x 8-pin RJ45 with 2 LED indicators, Output Receiving unit (RX)
Dimensions: 4.53"(W) x 3.58"(H) x 1.10"(D)
Weight: 0.86 lbs
Color: Black
Housing material: Metal

Connectors :
1x 20-pin DisplayPort, Female, Output
1x 3.5mm jack, IR receiver
1x 3.5mm jack, RS-232, Output
1x 3.5mm jack, Audio, Output
3x 8-pin RJ45 with 2 LED indicators, Input/Output Power adapter:
Input: 100-240VAC, 0.5A
Output: 5V/2A

Certifications/Standards:
FCC, CE, RoHS

Country of origin:
Taiwan Package Contents
DisplayPort to CAT5e Daisy Chain HD Extender Kit with RS-232 and IR
Power adapters 5V/2A (2)
3.5mm to RS-232 cables (2)
IR blaster cable
IR receiver cable
Audio cable
Installation guide Item Dimension (L"xW"xH"):
2.48 x 12.80 x 8.19

Weight:
2.86 lb

Warranty Information:
2 years
