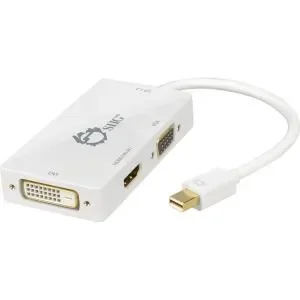

Product Overview
Simply connects the Mini DisplayPort output of tablet or laptop computer to either a HDMI, DVI or VGA equipped display device. Works with one connected output at a time. 3-in-1 converter solution expands the compatibility between Mini DisplayPort and most mainstream displays without requiring an additional adapter. Supports DisplayPort 1.2 protocols includes 48-bit color depth, high bite rate (up to 21.6 Gbps) and maximum video resolution up to 4Kx2K (30Hz) on HDMI output. Compact and lightweight design makes it a perfect solution to use at home, in the office, or on the road. No driver installation required. Supports audio out through HDMI connection only. Bus-powered, no external power source required.
Technical Specifications
Supports Mini DisplayPort v1.2 Dual-mode input
Supports DisplayPort v1.2, for 1.62 Gbps, 2.7 Gbps, 5.4 Gbps link rates Resolution
HDMI: Up to 3840x2160 at 30Hz
DVI: Up to 1920x1080 at 60Hz
VGA: Up to 1920x1200 at 60Hz Color
White Connectors
1, 20-pin, Mini DisplayPort, Male, Input
1, 19-pin, HDMI, Female, Output
1, 25-pin, DVI-D, Female, Output
1, 15-pin, D-sub VGA, Female, Output Environmental Conditions
Operating Temperature: 32 to 113 Degrees F
Storage Temperature: 14 to 158 Degrees F
Relative Humidity: < 85% Non-Condensing Certifications/Standards
FCC, CE, RoHS Item Dimension (L"xW"xH")
3.35 x 0.47 x 2.36
Weight
0.27 lb
Warranty Information
2 Years
