Product Overview

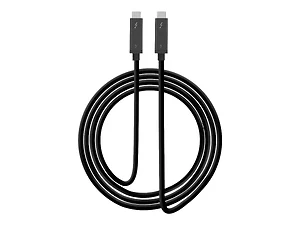

General InformationSIIGs Thunderbolt 3 active cable provides the highest Thunderbolt transmission speed the highest video streaming the fastest device charging and more protocols this Thunderbolt 3 active cable does it all Advanced active Thunderbolt 3 cable with transceivers and electronics regulates the data transfer through the cable for reliable connection and performance Thunderbolt 3 active cables provide the best performance from todays small reversible USBC interface Provides fast reliable Thunderbolt 3 performance data transfer speeds up to 40Gbps up to 4 times the speed of previous Thunderbolt generations Ultra high resolution video to connect up to 2 4K monitors or one 5K monitor and USB 20 speed up to 480Mbps Compliant with USB Power Delivery 20 supports up to 100W 20V5A power charging your notebooklaptop USBC Thunderbolt 3 active cable is ideal for single cable Thunderbolt 3 docking station solution one cable with reversible connectivity is all you need Note Active Thunderbolt 3 cables are limited to USB 20 speed by designTechnical InformationCable Type Thunderbolt 3Cable Length 656 ftConnector on First End 1 x USB Type C Male USB 31 Thunderbolt 3Connector on Second End 1 x USB Type C Male USB 31 Thunderbolt 3Features ActiveFeatures ReversibleDevice Supported Docking StationDevice Supported NotebookDevice Supported MonitorData Transfer Rate 5 GBsPhysical CharacteristicsColor BlackMiscellaneousEnvironmentally Friendly YesEnvironmental Certification RoHSCountry of Origin TaiwanTAA Compliant YesWarrantyLimited Warranty 1 Year
Technical Specifications
Length
2 meters Connector
USB Type-C, male to male Data transfer rate
40Gbps, Thunderbolt
10Gbps, USB 3.1 Gen 2
Note: Active Thunderbolt 3 cables do not support USB 3.1 and 3.0 backwards compatibility with non-Thunderbolt USB-C ports Power delivery capacity
100W (20V/5A) DisplayPort
DisplayPort 1.2
Note: Active Thunderbolt 3 cables do not support DisplayPort Alternate Mode (DP Alt) with non-Thunderbolt USB-C ports Color
Black Environmental conditions
Operating temperature: 32 to 122 degrees F
Storage temperature: 14 to 140 degrees F
Humidity: 10% to 90% RH (non-condensing) Certifications/Standards
RoHS, Thunderbolt 3 Item Dimension ( L inch x W inch x H inch)
2 x 7 x 10 Weight
1.00 lb Warranty Information
1 Year
