Technical Specifications
Compliant with DisplayPort 1.2 specification
Supports HDCP 2.2 and 1.4 content protection
Supports up to 4Kx2K at 60Hz resolution
Bandwidth:
Up to 21.6Gbps (5.4Gbps per channel) AOC (Active Optical Cable) technology:
4x Discrete Optical Channels,10GHz, 850nm
Uni-directional cable connection
Cable outside diameter:
4.8mm OD Product:
Cable length: 15 meters (50ft)
DisplayPort connector housing material: Zinc alloy
Color: Matte black

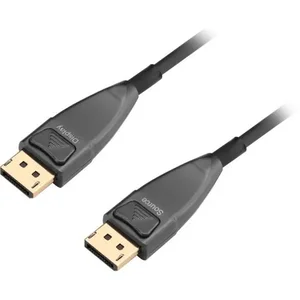

Connectors:
1 x 20-Pin, DisplayPort, Latching, Male, Source
1 x 20-Pin, DisplayPort, Latching, Male, Display
Gold plated
Environmental conditions:
Operating temperature: 32 to 122 degrees F
Storage temperature: -4 to 158 degrees F
Humidity: < 5% to 85% (non-condensing)
Certifications/Standards:
FCC, CE, RoHS Item Dimension (L"xW"xH")
9 x 10 x 2
Weight
2.00 LB
Warranty Information
2 years
