Special Order
Ships in 1-2 weeks
Condition: New

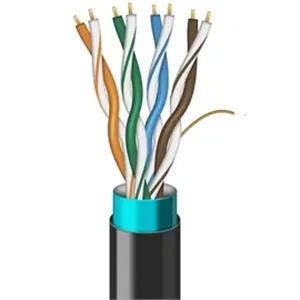

The LigoWave 1000ft Outdoor CAT5e Ethernet Cable is engineered for high performance and reliability in various outdoor environments. Designed per TIA/EIA standards, this cable supports up to 1 Gbps speeds while ensuring protection against harsh weather conditions and electrostatic discharge incidents.
| Ethernet Speed Support | Up to 1 Gbps |
|---|---|
| Conductor Wire Gauge | 24 AWG |
| Conductor Material | Solid bare copper |
| Conductor Diameter | 0.51 +/- 0.01 mm |
| Insulation Type | High-density PE |
| Insulation Thickness | Average: 0.245 mm, Min: 0.23 mm |
| Insulation Diameter | 1.0 +/- 0.02 mm |
| Separation (Polyester Wrapping) | 125% Coverage |
| Cable Shield | 100% Aluminum foil coverage |
| Anti-ESD Drain Wire | 0.4 mm CCS |
| Rip Cord | 750D nylon yarn |
| Jacket Material | PE |
| Jacket Thickness | Average: 0.55 mm, Min: 0.45 mm |
| Jacket Outer Diameter | 6.1 +/- 0.3 mm |
| Jacket Color | Black |
| Operating Temperature Range | 20°C (-4°F) to 60°C (149°F) |
| Average Energy Transmission Loss | < 4% (at 18V, 100m) |
| Regulatory Standard Compliance | ISO/IEC 11801, TIA/EIA-568C.2 |
| Item Dimension | 14 x 11 x 14 inches |
| Weight | 26.00 lb |
| Warranty | 2 Years |
