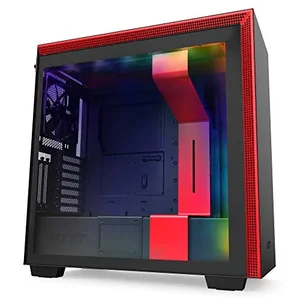

CA-H710I-BR - Nzxt CS CA-H710i-BR H710i MidTower USB 3.5 2.5 mITX mATX ATX EATX MatteBK RD

Material(s)
SGCC Steel and Tempered Glass
Motherboard Support
Mini-ITX, MicroATX, ATX and EATX (Up to 272mm or 10.7-inches)
Front I/O Ports
1x USB 3.1 Gen 2 Type-C
2x USB 3.1 Gen 1 Type-A
1x Headset Audio Jack
Front I/O internal header
1x USB 3.1 Gen 2 Internal Header
1x USB 3.1 Gen 1 Internal Header
1x USB 2.0 Internal Header
1x HD Audio Header
Filters
All Air Intakes
Smart Device V2
3x Fan channels with Max 10W per channel output
2x RGB LED port support up to 4 x HUE 2 addressable LED strips or 5 x Aer RGB fans
Built-in noise detection module
(Note: If a splitter is used, fan control is regulated depending on the fan connected to the 4-pin port. Do not use low-noise adapters. )
LED Strip(s)
2 integrated addressable LED strips
Vertical GPU Mount
Up to 2.5 Slots
Included Accessories
Installation screws
10x Cable ties
1x Headset Audio Jack Splitter (4 pole to 3 pole)
Expansion Slots
7
Drive Bays
2.5": 7
3.5": 2+2
Radiator Support
Front: 2x 140 or 3x 120mm with Push/Pull
Top: 2x 140 or 3x 120
Rear: 1x 120
Fan Support
Front: 3x 120/ 2x 140mm (3 Aer F120 Case Version included)
Top: 3x 120/2x 140mm
Rear: 1x 120/1x 140mm (1 Aer F140 Case Version included)
Fan Specs
Aer F120 (Case Version)
Speed: 1200 +/- 200 RPM
Airflow: 50.42
CFM Noise: 28 dBA
Bearing: Rifle Bearing
Aer F140 (Case Version)
Speed: 1,000 +/- 200 RPM
Airflow: 68.95 CFM
Noise: 29 dBA
Bearing: Rifle Bearing
Clearance
Cable Management: 18-22mm
GPU Clearance: Up to 413mm
Vertical GPU Mount Clearance: 50.8mm
CPU Cooler: Up to 185mm
Front Radiator: 60mm
Top Radiator: 30mm
Reservoir and Pump: Up to 224mm (Along cable bar)
Item Dimension (L"xW"xH")
24 x 14 x 24
Weight
59.00 LB
Warranty Information
2 years
