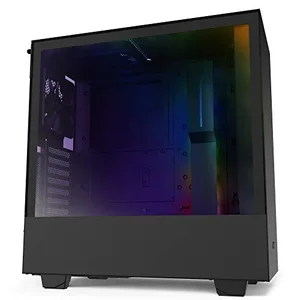

CA-H510I-B1 - Nzxt CS CA-H510i-B1 H510i Mid-Tower TG USB 3.5 2.5 mITX mATX ATX Matte BK

Material(s)
SGCC Steel and Tempered Glass
Motherboard Support
Mini-ITX, MicroATX, and ATX
Front I/O Ports
1x USB 3.1 Gen 2 Type-C
1x USB 3.1 Gen 1 Type-A
1x Headset audio Jack
Front I/O internal header
1x USB 3.1 Gen 2 Internal Header
1x USB 3.1 Gen 1 Internal Header
1x USB 2.0 Internal Header
1x HD Audio Header
Filters
All Air Intakes
Smart Device V2
3x Fan channels with Max 10W per channel output
2x RGB LED port support up to 4x HUE 2 addressable LED strips or 5x Aer RGB or Aer RGB 2 fans
Built-in noise detection module
(Note: If a splitter is used, fan control is regulated depending on the fan connected to the 4-pin port. Do not use low-noise adapters.)
LED Strip(s)
2 integrated addressable LED strip
Vertical GPU Mount
2 Slots
Included Accessories
Installation screws
10x Cable ties
1x Headset Audio Jack splitter (4 pole to 3 pole)
Drive Bays
2.5": 2+1
3.5": 2+1
Expansion Slots
7
Radiator Support
Front: 2x 140 or 2x 120mm with Pull
Rear: 1x 120mm
Clearance
Cable Management: 19-23mm
GPU Clearance: Up to 381mm w/o front watercooler installed, up to 325mm with front watercooler installed
Vertical GPU Mount Clearance: 40.64mm
CPU Cooler: Up to 165mm
Front Radiator: 60mm
Rear Radiator: 60mm
Reservoir and Pump: Up to 180mm (Along cable bar), Up to 86mm (Along bottom panel)
Fan Support
Front: 2 x 120/ 2 x 140mm
Top: 1x 120mm/ 1x 140mm (1 Aer F120 Case Version included)
Rear: 1x 120mm (1 Aer F120 Case Version included)
Fan Specs
Aer F120 (Case Version)
Speed: 1200 +/- 200 RPM
Airflow: 50.42 CFM
Noise: 28 dBA
Bearing: Rifle Bearing
Item Dimension (L"xW"xH")
21 x 11 x 20
Weight
34.00 LB
Warranty Information
2 years
