Condition: New
NZXT CS H210i SGCC Steel and TG .

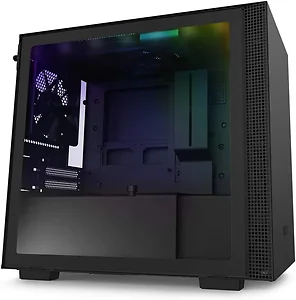

NZXT H210i - CA-H210i-B1 - Mini-ITX PC Gaming Case - Front I/O USB Type-C Port - Tempered Glass Side Panel Cable Management - Water-Cooling Ready - Integrated RGB Lighting - Black .
The NZXT H210i Mini-ITX PC Gaming Case, part number CA-H210I-B1, is designed for IT professionals and system integrators building compact, high-performance workstations or gaming systems. Constructed from SGCC steel and tempered glass, this matte black enclosure supports Mini-ITX motherboards. It features a front I/O panel with one USB 3.1 Gen 1 Type-A port, one USB 3.1 Gen 2 Type-C port, and a headset audio jack for convenient connectivity. The case includes integrated RGB lighting and a Smart Device V2 for fan and lighting control, along with a built-in noise detection module. Cable management is facilitated by 16.3mm of clearance, and the case supports water-cooling configurations with radiator mounts in the front and rear. All air intakes are filtered, contributing to system longevity in various operational environments.
Material(s)
SGCC Steel and Tempered Glass Motherboard
Support Mini-ITX Front I/O Ports
1x USB 3.1 Gen 1 Type-A
1x USB 3.1 Gen 2 Type-C
1x Headset Audio Jack
Front I/O internal header
1x USB 3.1 Gen 2 Internal Header
1x USB 3.1 Gen 1 Internal Header
1x USB 2.0 Internal Header
1x HD Audio Header Filters
All Air Intakes Smart Device V2
3x Fan channels with Max 10W per channel output
2x RGB LED port support up to 4x HUE 2 addressable LED strips or 5x Aer RGB or Aer RGB 2 fans
Built-in noise detection module
Note: If a splitter is used, fan control is regulated depending on the fan connected to the 4-pin port. Do not use low-noise adapters. LED Strip(s)
1 integrated addressable LED strip Included Accessories
Installation screws
10 x Cable ties
1x Headset Audio Jack splitter (4 pole to 3 pole)
1x GPU stand Expansion Slots
2 Drive Bays
2.5": 3+1
3.5": 1 Radiator Support
Front: 2x 120mm with Push or Pull
Rear: 1x 120mm Fan Support
Front: 2x 120 / 2x 140mm
Top: 1x 120mm (1 AER F120 Case version included)
Rear: 1x 120mm (1 AER F120 Case version included) Fan Specs
Aer F120 (Case Version)
Speed: 1200 +/- 200 RPM
Airflow: 50.42
CFM Noise: 28 dBA
Bearing: Rifle Bearing Clearance
Cable Management: 16.3mm
GPU Clearance: Up to 325mm
GPU Max Thickness: 44mm
CPU Cooler: Up to 165mm
Front Radiator: 85mm
Rear Radiator: 42mm
PSU Length: 311mm Item Dimension (L"xW"xH")
16 x 11 x 18
Weight
23 lbs
Warranty Information
2 Years
This case is designed to support Mini-ITX motherboards exclusively.
Included accessories are installation screws, 10 cable ties, a headset audio jack splitter (4 pole to 3 pole), and a GPU stand.
Yes, the case supports liquid cooling with radiator mounts for a 2x 120mm radiator in the front and a 1x 120mm radiator in the rear.
The case provides GPU clearance of up to 325mm in length and a maximum thickness of 44mm.
CA-H210I-B1 - Nzxt CS CA-H210i-B1 H210i SGCC Steel and TG USB 3.5 2.5 Mini-ITX Matte Black
