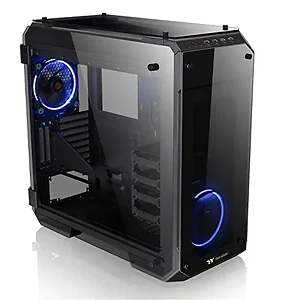

CA-1I7-00F1WN-00 - Thermaltake VIEW 71 TEMPERED GLASS FULL TOWER CASE

Case Type
Full Tower
Side Panel
5mm Tempered Glass x 4
(Left Right Front Top)
Color
Exterior Interior : Black
Material
SPCC
Cooling System
Rear (exhaust) :
140 x 140 x 25 mm Riing LED Blue fan
(1400rpm, 28dBA) (1000rpm, 22 dBA with LNC)
Front (intake) :
140 x 140 x 25 mm Riing LED Blue fan
(1400rpm, 28dBA) (1000rpm, 22 dBA with LNC)
Drive Bays
-Accessible: 2.5 x 4 or 3.5x4(HDD Rack)
-Hidden:2.5x 6 or 3.5 x 3
Expansion Slots
8+2
Motherboards
6.7 x 6.7 (Mini ITX), 9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX), 12 x 13(E-ATX)
I/O Port
USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1
Fan Support
Front:
3 x 120mm , 2 x 140mm
Top:
3 x 120mm , 3 x 140mm
Rear:
1 x 120mm, 1 x 140mm
Bottom:
2 x 120mm
Radiator Support
Front:
1 x 360mm , 1 x 420mm
Top:
1 x 360mm , 1 x 420mm
Rear:
1 x 120mm, 1 x 140mm
Right:
1 x 360mm, 1 x 420mm
Bottom:
1 x 240mm
Clearance
CPU cooler height limitation:
190mm
VGA length limitation:
310mm(With HDD Rack)
410mm(Without HDD Rack)
PSU length limitation:
220mm (Without Bottom Fan)
Item Dimension (L inchxW inchxH inch)
28 x 16 x 23 Weight
63.00lb Warranty Information
3 Years
