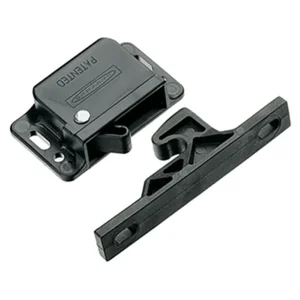

C3-810 - Southco Grabber Catch Latch - Side Mount - Black - Pull-Up Force 44N (10lbf)

Grabber Catch Latch - Side Mount - Black - Pull-Up Force 44N (10lbf)

Features:

• Spring-loaded over-center latching
• One assembly includes catch and keeper
• Material and Finish: PC/ABS, black

Performance Details:

• Operating temperature range: -30ºC (-20ºF) to 60ºC (140ºF)
• Flammability rating: UL94-HB

Installation Notes:

• Orient keeper to latch. The arrow on the keeper should point towards the cam. Mount to door and adjust for smooth latching.
• Minimum distance from frame (or surface on which catch subassembly is mounted) to centerline of door hinge is 150 (5.9)

The Southco Grabber Catch Latch (part number C3-810) is a side-mount, spring-loaded over-center latching mechanism designed for securing enclosures or panels. It provides a pull-up force of 44N (10lbf) and is constructed from black PC/ABS material. This latch is suitable for IT infrastructure, industrial enclosures, or equipment where reliable closure is required within an operating temperature range of -30�C to 60�C. It addresses the need for a straightforward, durable latching solution that can withstand specified environmental conditions. The assembly includes both the catch and keeper, simplifying procurement and installation for integrators and maintenance teams. Its UL94-HB flammability rating indicates suitability for applications requiring a certain level of material fire resistance.
