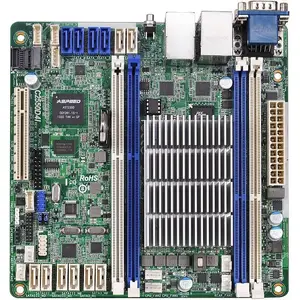

C2550D4I - Asrock Rack C2550D4I Intel Avoton C2550 2.4GHz/ DDR3/ SATA3/ V&2GbE/ Mini-ITX Motherboard & CPU Combo

MB Physical Status
Form Factor- Mini ITX
Dimensions- 6.7 x 6.7 (17.02 cm x17.02 cm)

Processor System
CPU- Intel Quad-Core Avoton C2550 Processor
Socket- FCBGA1283 SOC System Memory
Capacity
- 4 x 240-pin DDR3 DIMM slots
- Support up to 64GB DDR3 ECC and UDIMM

Type
- Dual Channel DDR3 memory technology
- Supports DDR3 1600/1333 ECC and UDIMM

Voltage- 1.5V, 1.35V Expansion Slot
PCIe 2.0 x 8- 1 slot (x8 mode)

Storage
SATA Controller- Intel C2550 : 2 x SATA3 6.0 Gb/s, 4 x SATA2 3.0 Gb/s
Additional Storage Controller- Marvell SE9172: 2 x SATA3 6.0 Gb/s
- Marvell SE9230: 4 x SATA3 6.0 Gb/s Ethernet
Interface- Gigabit LAN 10/100/1000 Mb/s

LAN Controller
- 2 x Intel i210
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE Management
BMC Controller- ASPEED AST2300 : IPMI (Intelligent Platform Management Interface) 2.0 with iKVM support
IPMI Dedicated LAN- 1 x Realtek RTL8211E for dedicated management LAN

Features
- Watch Dog
- NMI Graphics
Controller- ASPEED AST2300
VRAM- DDR3 16MB
Output- Supports D-Sub with max. resolution up to 1920x1200 at 60Hz Rear Panel I/O
VGA Port- D-sub x 1
USB 2.0 Port- 2

Lan Port
- 2 x RJ45 Gigabit Ethernet LAN ports
- 1 x RJ45 Dedicated IPMI LAN port
- LAN Ports with LED (ACT/LINK LED and SPEED LED)

Serial Port- 1 (COM1)
UID Button/UID LED- 1 Internal Connector
Auxiliary Panel Header- 1 (include chassis intrusion, location button and LED, front LAN LED)
IPMB Header- 1
Fan Header- 6 x 4-pin
ATX Power- 1 (24-pin)
USB 2.0 Header- 1 (support 1 via headers or 2 via headers controlled by USB_SEL1 and USB_SEL2 jumper)
Front Panel- 1 System BIOS
BIOS Type- 64Mb AMI UEFI Legal BIOS

BIOS Features
- Plug and Play (PnP)
- ACPI 1.1 Compliance Wake Up Events
- SMBIOS 2.3.1 Support
- DRAM Voltage Multi-adjustment
- ASRock Instant Flash Hardware Monitor
Temperature
- CPU Temperature Sensing
- Motherboard Temperature Sensing

Fan
- CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control

Voltage- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, +1.1V,+1.0V, +BAT, 3VSB, 5VSB Support OS
OS:
Microsoft Windows
- Server 2008 R2 (x64)
- Server 2012 (x64)

Linux
- RedHat Enterprise Linux Server 5.5/6.4 (x32 and x64)
- CentOS 5.5 / 6.4 (x32 and x64)
- SUSE Enterprise Linux Server 11 SP1 (x32 and x64)
- FreeBSD 9.1 (x32/x64)
- Fedora core 18 (x64)
- Ubuntu 12.04/12.10 (x64)

Virtual
- VMWare ESXi 5.1 (Marvell SE9230 and Marvell SE9172 has no driver can support VMWare) Item Dimension (L"xW"xH"):
1.19 x 1.03 x 0.5

Weight:
1.8 lb

Warranty Information:
1 Year
