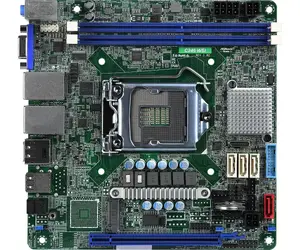

Asrock C246 WSI RACK C246 WSI MINI-ITX SERVER MOTHERBOARD LGA 1151 INTEL C246

MB Physical Status

Form Factor
- mini-ITX Processor System
CPU
- Supports Intel Xeon E-2100 Processors (Max. 95W)
Chipset
- Intel C246 System Memory
Capacity
- 2 x DDR4 DIMM slots
Type
- Dual Channel memory technology
- Supports DDR4 2133/2400/2666 ECC UDIMM
The non-ECC UDIMMs support Client OS only.
DIMM Size Per DIMM
- ECC and non-ECC UDIMM : 4GB, 8GB, 16GB, 32GB
Future support for 32GB via a BIOS update in Oct.
Voltage
- 1.2V Expansion Slot
PCIe 3.0 x 16
- SLOT7: Gen3 x16 link Storage
SATA Controller
- Intel C246: 1 x OCuLINK (SATA_0,1,2,3) 4 x SATA3 6Gb/s (SATA_4,5,6,7), 1 x SATA DOM included
Please contact sales to buy the OCuLink to 4x SATA cable
NVMe Device
- NVMe SSDs PCIEx4 (Share with SATA_0,1,2,3)
M.2 slot
- 1 x M.2 (NGFF 2242, PCI-E Gen3 x4 link or SATA signal)
SATA 1 will be disable when M.2 is SATA signal Ethernet
Interface
- 1000 /100 /10 Mbps
LAN Controller
- 2 x RJ45 GLAN by Intel i210+Intel i219LM
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function(TBD)
- Supports PXE
- LAN1 supports NCSI
Management
- 1 Management
BMC Controller
- N/A
IPMI Dedicated GLAN
- N/A
Features
- Watch Dog
- NMI Graphics
Controller
- CPU pGFX Audio
Audio Codec
- Realtek ALC892 Rear Panel I/O
HDMI
- 1
VGA Port
- 1 x D-Sub
USB 2.0 Port
- 2
USB 3.1 Gen1 Port
- N/A
USB 3.1 Gen2 Port
- 4 (Type A Gen2 x4)
Lan Port
- RJ45: 2x GLAN(by Intel i210+ Intel i219LM)
- LAN Ports with LED (ACT/LINK LED and SPEED LED)
Display Port
- 1
UID Button/UID LED
- N/A
Audio
- 3+1 CH with SPDIF
SPDIF
1 Internal Connector
COM Header
- 1
SATA DOM
- 1
M.2
- 1(2242, PCIE(x4)/SATA3 6Gb/s(SATA 1))
OCuLink
- 1
Auxiliary Panel Header
- 1 (include chassis intrusion, location button and LED, front LAN LED, event log LED)
TR1 Header
- 1
TPM Header
- 1
IPMB Header
- N/A
Buzzer
- N/A
Fan Header
- 3(1CPU/1Front/1Rear)
ATX Power
- 1x (4-pin)
DC IN
- 1x (8-pin)
USB 3.1 (Gen1) Header
- 1 (support 2 USB 3.0)
USB 2.0 Header
- N/A
PWR SMB Header
- N/A
Front Panel
- 1 (RST, HDLED, PLED, PERBTN)
Serial ATA3 Connector
- 3
HDD Power Connector
- 1x (4-pin)
Speaker Header
- 1(4pin)
Serial Port
- 1x (8-pin)
SGPIO Header
- 2
Clear CMOS
- 1 (short pad) Onboard LED
80 Debug Port LED
- N/A System BIOS
BIOS Type
- 256Mb AMI UEFI Legal BIOS
BIOS Features
- Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8.0 Support
- ASRock Rack Instant Flash Hardware Monitor
Temperature
- CPU Temperature Sensing
- System Temperature Sensing
- System Inlet Temperature Sensing
Fan
- CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control
Voltage
- 3V, Vcore, 12V, VCCST_SFR, 3VSB Support OS
OS
Microsoft Windows:
Windows 10 (64 bit)
Linux
- RedHat Enterprise Linux Server 6.10 (64 bit) / 7.5 (64 bit)
- SUSE Enterprise Linux Server 11 SP4 (64 bit) / 12 SP3 (64 bit)
- Ubuntu 16.04 (64 bit)/ 18.04 (64 bit)
Virtual
- VMWare ESXi 6.5 u1
- Win hyper-V Server 2016 Environment
Temperature
Operation temperature: 10^oC 35^oC / Non operation temperature: -40^oC 70^oC Item Dimension (L"xW"xH")
7 x 7 x 1

Weight
1 lb

Warranty Information
3 Years
