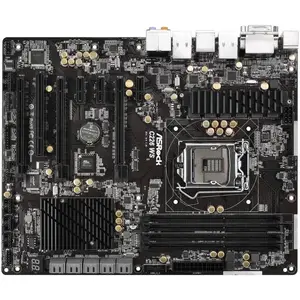

Asrock C226 WS/C2 Rack C226 WS/C2 ATX Server Motherboard LGA1150

Specifications

• CPU: LGA1150
  • Supports 4th Generation Intel Xeon E3-1200 v3/Core i7/i5/i3/Pentium/Celeron processors
  • 6 Power Phase Design
  • Supports Intel K-Series CPU
  • Supports Intel Turbo Boost 2.0 Technology
  • Supports Hyper-Threading Technology
• Chipset: Intel C226
• Memory: 4x 240pin DDR3-1600/1333 DIMM Slots, Dual Channel, ECC, Unbuffered, Max Capacity of 32GB
• Slots: 2x PCI-Express 3.0 x16 Slots (supports x16/x0 or x8/x8), 1x PCI-Express 2.0 x16 Slot (runs at x4), 3x PCI-Express 2.0 x1 Slots, 1x PCI Slot
• SATA: 10x SATA3 Ports, Six by Intel C226 Support RAID 0, 1, 5, 10, Four by Marvell 9172 Support RAID 0, 1
• Audio: Realtek ALC1150 High Definition Audio CODEC
• LAN: 2x Intel i210 Gigabit Ethernet Controllers
• Ports: 6x USB 3.0 Ports (4 rear, 2 via header), 10x USB 2.0 Ports (4 rear, 6 via headers), 1x PS/2 Keyboard/Mouse Port, 1x DVI-I Port, 1x HDMI Port, 1x DisplayPort, 1x eSATA3 Port, 1x IEEE1394 Port, 1x SPDIF, 2x RJ45 LAN Ports, Audio I/O Jacks
• Power Connector: 1x 24pin ATX Power Connector, 1x 8pin ATX Power Connector
• Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm
