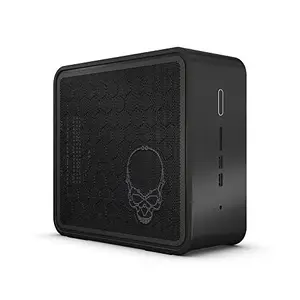

BXNUC9I7QNX1 - Intel BTO NUC

Essentials
Product Collection
Intel NUC Kit with 9th Generation Intel Core^TM Processors
Code Name
Intel NUC 9 Extreme Kit - NUC9i7QNX
Status
Launched
Supported Operating Systems
Windows 10, 64-bit, Linux
Board Number
NUC9i7QNB
Board Form Factor
PCIe
Internal Drive Form Factor
M.2 SSD
Number of Internal Drives Supported
3
Off Roadmap
No
Board Chipset
Mobile Intel CM246 Chipset
Processor Included
Intel Core^TM i7-9750H Processor (12M Cache, up to 4.50 GHz)
Intel vPro^TM Platform Eligibility
No
Number of Cores
6
Number of Threads
12
Processor Base Frequency
2.60 GHz
Max Turbo Frequency
4.50 GHz
Recommended Customer Price
1104.99 - 1107.45 dollars
Supplemental Information
Embedded Options Available
No
Memory and Storage
Max Memory Size (dependent on memory type)
64 GB
Memory Types
DDR4-2666
Max number of Memory Channels
2
Max Memory Bandwidth
42.6 GB/s
Max number of DIMMs
2
ECC Memory Supported
No
Processor Graphics
Processor Graphics
Intel UHD Graphics 630
Integrated Graphics
Yes
Graphics Output
2x Thunderbolt 3, HDMI 2.0a
Number of Displays Supported
3
Discrete Graphics
Via PCIe add-in card(s)
Expansion Options
PCI Express Revision
Gen3
PCI Express Configurations
2x M.2 PCIe X4 slots (PCH), 1x M.2 PCIe X4 slot (CPU)
Double-wide PCIe X16 (CPU) slot shared with PCIe X4 (CPU) slot, 8" max card length
PCIe x4 Gen 3
1
PCIe x16 Gen 3
1
Removable Memory Card Slot
SDXC with UHS-II support
M.2 Card Slot (storage)
2x via PCH + 1x via CPU (NVMe)
I/O Specifications
Number of USB Ports
11
USB Configuration
4x rear USB 3.1g2, 2x Thunderbolt 3 (USB 3.1g2), 2x front USB 3.1g2, 2x USB 2.0 via internal headers, 1x USB 2.0 internal
USB Revision
3.1 Gen2, 2.0
USB 2.0 Configuration (External + Internal)
3x int.
Total number of SATA Ports
3
Max number of SATA 6.0 Gb/s Ports
3
RAID Configuration
2x M.2 SATA/PCIe SSD, SATA header (RAID-0 RAID-1)
Audio (back channel + front channel)
7.1 digital, L+R+mic (F), L+R+TOSLINK (R)
Integrated LAN
Intel Ethernet Connection i219-LM and i210-AT
Integrated Wireless
Intel Wi-Fi 6 AX200
Integrated Bluetooth
Yes
S/PDIF Out Connector
TOSLINK
Additional Headers
CEC, 2x USB2.0, FRONT_PANEL
Number of Thunderbolt^TM 3 Ports
2
Advanced Technologies
Intel Optane^TM Memory Supported
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel vPro^TM Platform Eligibility
No
TPM
Yes
Intel Rapid Storage Technology
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Platform Trust Technology (Intel PTT)
Yes
Security and Reliability
Intel AES New Instructions
Yes
Item Dimension (L"xW"xH")
19 x 16 x 16
Weight
8.00 LB
Warranty Information
3-year limited
