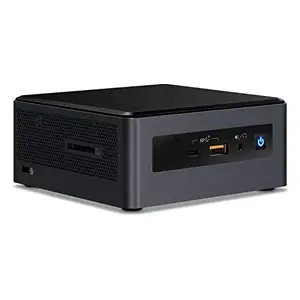

BXNUC8I5INHPA1 - Intel SY BXNUC8I5INHPA1 Core i5-8265U Win10 Home 256G SSD 8GB Retail

Essentials
Product Collection
Intel NUC Mini PC with 8th Generation Intel Core Processors
Code Name
Products formerly Islay Canyon
Board Form Factor
UCFF (4" x 4")
Socket
Soldered-down BGA
Internal Drive Form Factor
M.2 and 2.5" Drive
Number of Internal Drives Supported
2
Lithography
14 nm
TDP
15 W
DC Input Voltage Supported
19 VDC
Pre-Installed Operating System
Windows 10, 64-bit
Processor Included
Intel Core i5-8265U Processor (6M Cache, up to 3.90 Ghz) Supplemental Information
Embedded Options Available
No
Description
Other features: 16GB Intel Optane Memory M.2 module + 1TB 2.5" HDD, or 256GB M.2 SSD, and Windows 10, 64-bit Home pre-installed, includes SDXC card slot Memory and Storage
Included Storage
1TB HDD, or 256GB M.2 SSD
Included Memory
8GB LPDDR3 or 8GB LPDDR3 + 16GB Intel Optane
Max Memory Size (dependent on memory type)
8 GB
Memory Types
LPDDR3-1866/2133
Max Number of Memory Channels
2
Max Memory Bandwidth
34 GB/s
ECC Memory Supported
No Processor Graphics
Integrated Graphics
Yes
Graphics Output
HDMI 2.0b, Mini-DP 1.4
Number of Displays Supported
3
Discrete Graphics
Radeon 540X, 2GB GDDR5 Expansion Options
PCI Express Revision
Gen3
PCI Express Configurations
M.2 slot with PCIe X4 lanes
Removable Memory Card Slot
SDXC with UHS-I support
M.2 Card Slot (storage)
22x80 I/O Specifications
Number of USB Ports
6
USB Configuration
2x front and 2x rear USB 3.1 Gen2 2x USB 2.0 via internal headers
USB Revision
2.0, 3.1 Gen2
USB 2.0 Configuration (External + Internal)
0 + 2
USB 3.0 Configuration (External + Internal)
2B 2F + 0
Total Number of SATA Ports
2
Max Number of SATA 6.0 Gb/s Ports
2
RAID Configuration
2.5" HDD/SSD + M.2 SATA/PCIe SSD (RAID-0 RAID-1)
Audio (back channel + front channel)
7.1 digital (HDMI) L+R+mic (F)
Integrated LAN
Intel Ethernet Connection I219-V
Integrated Wireless
Intel Wireless-AC 9560 + Bluetooth 5.0
Integrated Bluetooth
Yes
Consumer Infrared Rx Sensor
Yes
Additional Headers
CEC, 2x USB2.0 Advanced Technologies
Intel Optane Memory Supported
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel vPro Platform Eligibility
No
TPM
No
Intel HD Audio Technology
Yes
Intel Rapid Storage Technology
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Platform Trust Technology (Intel PTT)
Yes Security and Reliability
Intel AES New Instructions
Yes Item Dimension (L"xW"xH")
6 x 5 x 5

Weight
2.46 lbs

Warranty Information
3 year limited
