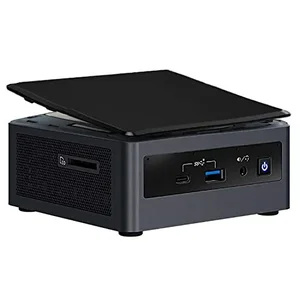

Intel BXNUC10i7FNH NUC Kit NUC10i7FNH no cord

Essentials
Product Collection
Intel NUC Kit with 10th Generation Intel Core^TM Processors
Code Name
Intel NUC 10 Performance kit - NUC10i7FNH
Status
Launched
Supported Operating Systems
Windows 10, 64-bit
Board Number
NUC10i7FNB
Board Form Factor
UCFF (4" x 4")
Socket
Soldered-down BGA
Internal Drive Form Factor
M.2 and 2.5" Drive
Number of Internal Drives Supported
2
Lithography
14 nm
TDP
25 W
DC Input Voltage Supported
19 VDC
Processor Included
Intel Core^TM i7-10710U Processor (12M Cache, up to 4.70 GHz)
Intel vPro^TM Platform Eligibility
No
Number of Cores
6
Number of Threads
12
Processor Base Frequency
1.10 GHz
Max Turbo Frequency
4.70 GHz
Recommended Customer Price
586.95 - 589.41 dollars
Supplemental Information
Embedded Options Available
No
Description
Other features: Includes far-field quad array microphones
Memory and Storage
Max Memory Size (dependent on memory type)
64 GB
Memory Types
DDR4-2666 1.2V SO-DIMM
Max number of Memory Channels
2
Max Memory Bandwidth
42.6 GB/s
Max number of DIMMs
2
ECC Memory Supported
No
Processor Graphics
Processor Graphics
Intel UHD Graphics
Integrated Graphics
Yes
Graphics Output
HDMI 2.0a, USB-C (DP1.2)
Number of Displays Supported
3 Expansion Options
PCI Express Revision
Gen3
PCI Express Configurations
M.2 slot with PCIe X4 lanes
Removable Memory Card Slot
SDXC with UHS-II support
M.2 Card Slot (storage)
22x42/80
Number of USB Ports
7
USB Configuration
2x front (Type-A, Type-C) and 3x rear USB 3.1 Gen2 (2x Type-A, Type-C), 2x USB 2.0 via internal headers
USB Revision
2.0, 3.1 Gen2
USB 2.0 Configuration (External + Internal)
0 + 2
USB 3.0 Configuration (External + Internal)
2B 2F + 0
Total number of SATA Ports
2
Max number of SATA 6.0 Gb/s Ports
2
RAID Configuration
2.5" HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1)
Audio (back channel + front channel)
7.1 digital (HDMI mDP), L+R mic (F)
Integrated LAN
Intel Ethernet Connection I219-V
Integrated Wireless
Intel Wi-Fi 6 AX201
Integrated Bluetooth
Yes
Consumer Infrared Rx Sensor
Yes
Additional Headers
CEC, 2x USB2.0, FRONT_PANEL
Number of Thunderbolt^TM 3 Ports
1
Advanced Technologies
Intel Optane^TM Memory Supported
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel vPro^TM Platform Eligibility
No
TPM
No
Intel HD Audio Technology
Yes
Intel Rapid Storage Technology
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Platform Trust Technology (Intel PTT)
Yes
Security and Reliability
Intel AES New Instructions
Yes Item Dimension (L"x W"x H")
8 x 5 x 5
Weight
2.71 LB
Warranty Information
3-year limited
