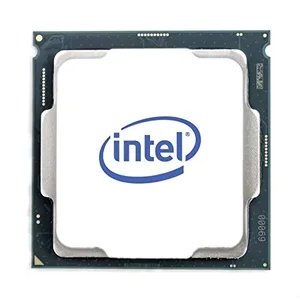

BX80684E2224G - Intel BOXED INTEL XEON E-2224G PROCESSOR

Essentials
Product Collection
Intel Xeon E Processor
Code Name
Products formerly Coffee Lake
Vertical Segment
Server
Processor Number
E-2224G
Lithography
14 nm Performance Specifications
Number of Cores
4
Number of Threads
4
Processor Base Frequency
3.50 GHz
Max Turbo Frequency
4.70 GHz
Cache
8 MB Intel Smart Cache
Bus Speed
8 GT/s
Intel Turbo Boost Technology 2.0 Frequency
4.70 GHz
TDP
71 W Supplemental Information
Embedded Options Available
No
Description
Support for up to 128GB system memory may require a BIOS update. Please contact your hardware provider regarding availability for your system. Memory Specifications
Max Memory Size (dependent on memory type)
128 GB
Memory Types
DDR4-2666
Max Number of Memory Channels
2
ECC Memory Supported
Yes Processor Graphics
Processor Graphics
Intel UHD Graphics P630
Graphics Base Frequency
350 MHz
Graphics Max Dynamic Frequency
1.20 GHz
Graphics Video Max Memory
128 GB
4K Support
Yes, at 60Hz
Max Resolution (HDMI 1.4)
4096x2160 at 24Hz
Max Resolution (DP)
4096x2304 at 60Hz
Max Resolution (eDP - Integrated Flat Panel)
4096x2304 at 60Hz
Max Resolution (VGA)
N/A
DirectX Support
12
OpenGL Support
4.5
Intel Quick Sync Video
Yes
Intel InTru 3D Technology
Yes
Intel Clear Video HD Technology
Yes
Intel Clear Video Technology
Yes
Number of Displays Supported
3
Device ID
0x3E96 Expansion Options
Scalability
1S Only
PCI Express Revision
3.0
PCI Express Configurations
1x16,2x8,1x8+2x4
Max Number of PCI Express Lanes
16 Package Specifications
Sockets Supported
FCLGA1151
Max CPU Configuration
1
TCASE
69.3^oC
TJUNCTION
100
Package Size
37.5 mm x 37.5 mm Advanced Technologies
Intel Optane Memory Supported
Yes
Intel Turbo Boost Technology
2.0
Intel vPro Platform Eligibility
Yes
Intel Hyper-Threading Technology
No
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Transactional Synchronization Extensions
Yes
Intel 64
Yes
Instruction Set
64-bit
Instruction Set Extensions
Intel SSE4.1, Intel SSE4.2, Intel AVX2
Idle States
Yes
Enhanced Intel SpeedStep Technology
Yes
Thermal Monitoring Technologies
Yes Security and Reliability
Intel AES New Instructions
Yes
Secure Key
Yes
Intel Software Guard Extensions (Intel SGX)
Yes with Intel ME
Intel Memory Protection Extensions (Intel MPX)
Yes
Intel OS Guard
Yes
Intel Trusted Execution Technology
Yes
Execute Disable Bit
Yes
Intel Boot Guard
Yes Item Dimension (L"xW"xH")
6 x 2 x 5

Weight
1 lb

Warranty Information
Intel 1-year limited
