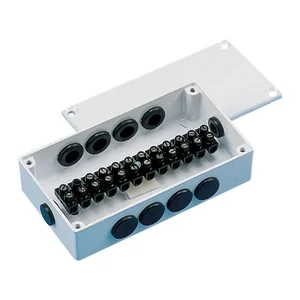

BX-2 - Newmar Power Splashproof Junction Box for Wiring Connections

BX-2 Splashproof Junction Box

This robust BX Series junction box is designed for secure and protected wiring connections in challenging environments such as wheelhouses, engine rooms, or below decks. With its splashproof design, it ensures durability and reliability in marine applications.

Key Features:

• IP54 rated for splashproof protection
• Rugged cast aluminum construction with a durable white enamel finish
• Metal enclosure minimizes electrical interference
• Multiple grommeted cable entries for easy wiring access
• Includes high-quality connector strips for secure wire connections�compression fittings eliminate the need for terminals

Specifications:

• Connector Strips Included: 1
• Positions Per Strip: 12
• Maximum Wire Gauge: 16
• Maximum Amperage (per position): 6
• Cable Entries: 8
• Cable Diameter Compatibility: 0.37 inches
• Overall Box Size: 4.4 x 2.4 x 1.2 inches
• Overall Box Size: 11.2 x 6.1 x 3.1 cm

The Newmar Power BX-2 Splashproof Junction Box is a robust enclosure designed for securing and protecting wiring connections in demanding operational environments. It is suitable for IT infrastructure within marine applications, including wheelhouses, engine rooms, or below-deck installations, where splashproof protection is necessary. Constructed from cast aluminum with a white enamel finish, this junction box offers IP54 rated protection against splashes and minimizes electrical interference for reliable signal integrity. It includes one 12-position connector strip, accommodating up to 16 AWG wire with a maximum of 6 amps per position. Eight grommeted cable entries facilitate straightforward wiring, supporting cables up to 0.37 inches in diameter. The BX-2 provides a practical solution for IT professionals and system integrators requiring durable, protected wiring points in challenging conditions.
