Technical Specifications
QL-570VM LBL PR BDL & VIS BADGE & MGMT KIT USB

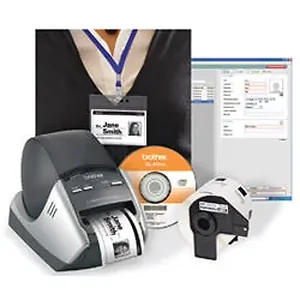

The Brother QL-570VM visitor badge and management kit is a complete badge solution that puts timely visitor log-in, professional badge creation, and efficient report generation within the reach of practically any organization - when used with a PC. If you are still using a paper log to track visitors, and need a better way to manage your entry/exit data - this could be the right solution for you. The robust software provides templates to create and print badges as well as the database program to recall, store and query visitor records. Make a great first impression while also keeping track of visitors to your office, school, or seminar. The QL-570VM includes Brother QL-570 Label Printer, VM-100 Visitor Badge and Management Software/P-touch Editor 5.0 Software and Drivers (included on one CD-ROM), Manuals and Quick Reference Guide, 2 DK-N5224 Continuous, Non-Adhesive DK Rolls,ΐ Badge Holders and Lanyards‡ and USB and Power Cord.
Product Description Brother QL-570VM - label printer - B/W - direct thermal
Printer Type Label printer - direct thermal - monochrome
Dimensions (WxDxH) 5.3 in x 8.2 in x 5.6 in
Weight 2.5 lbs
Max Media Size (Standard) Roll (2.44 in)
Print Speed Up to 68 labels/min ¦ Up to 212.6 inch/min
Max Resolution ( B&W ) 300 dpi x 600 dpi
Interface USB
Barcodes Code 39, UCC/EAN-128, QR code, MaxiCode, EAN/JAN-8 , EAN/JAN-13 , UPC-A, UPC-E, Codabar, Code 128, PDF417, Data Matrix, ITF, RSS
Media Type Labels, address labels, file folder labels, CD/DVD labels, shipping labels
Compatible Tapes DK tape
Styles & Effects Vertical, mirror, rotated text
Features Auto cutter
System Requirements Microsoft Windows Vista / 2000 / XP
Manufacturer Warranty 2 years warranty
General
Printer Type Label printer - direct thermal - monochrome
Width 5.3 in
Depth 8.2 in
Height 5.6 in
Weight 2.5 lbs
Printer
Print Speed Up to 68 labels/min - 300x300 dpi Up to 212.6 inch/min
Built-in Devices Cutter
Connectivity Technology Wired
Interface USB
Max Resolution ( B&W ) 300 dpi x 600 dpi
Styles & Effects Vertical, mirror, rotated text
Features Auto cutter
Barcodes Code 39, UCC/EAN-128, QR code, MaxiCode, EAN/JAN-8 , EAN/JAN-13 , UPC-A, UPC-E, Codabar, Code 128, PDF417, Data Matrix, ITF, RSS
Media Handling
Media Type Labels, address labels, file folder labels, CD/DVD labels, shipping labels
Compatible Tapes DK tape
Media Sizes Roll (2.44 in)
Max Printing Width 2.3 in
Max Printing Length 36 in
Expansion / Connectivity
Connections 1 x USB - 4 pin USB Type B
Miscellaneous
Cables Included 1 x USB cable
Power
Power Device Power supply - internal
Software / System Requirements
Software Included Drivers & Utilities, VM-100 Visitor Badge and Management, P-touch Editor 5.0 for Mac OS, P-touch Editor 5.0 for Windows
OS Required Microsoft Windows Vista / 2000 / XP
Manufacturer Warranty
Service & Support 2 years warranty
