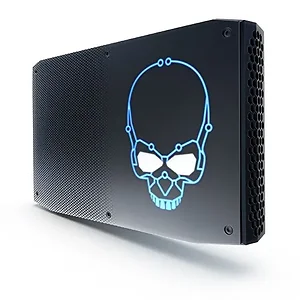

BOXNUC8I7HNK1 - Intel NUC KIT BOXNUC8i7HNK1 i7-8750G Single pack Retail

Essentials
Product Collection: Intel NUC Kit with 8th Generation Intel Core Processors
Code Name: Products formerly HADES CANYON
Board Form Factor: UCFF (5.5" x 8")
Socket: Soldered-down BGA
Internal Drive Form Factor: M.2 SSD
Number of Internal Drives Supported: 2
Lithography: 14 nm
TDP: 65 W
DC Input Voltage Supported: 19 VDC
Processor Included: Intel Core i7-8705G Processor with Radeon RX Vega M GL graphics (8M Cache, up to 4.10 GHz) Supplemental Information
Embedded Options Available: No
Description: Other features: Includes 2x Thunderbolt 3 (40Gbps) via rear USB-C ports, SDXC card slot and front USB-A and USB-C ports w/ USB 3.1 Gen 2 Memory and Storage
Max Memory Size (dependent on memory type): 32 GB
Memory Types: DDR4-2400+ 1.2V SO-DIMM
Max Number of Memory Channels: 2
Max Memory Bandwidth: 38.4 GB/s
Max Number of DIMMs: 2
ECC Memory Supported: No Processor Graphics
Integrated Graphics: Yes
Graphics Output: 2x Mini-DP 1.2, 2x Thunderbolt 3, F+R HDMI 2.0a
Number of Displays Supported: 6
Discrete Graphics: Radeon RX Vega M GL graphics Expansion Options
PCI Express Revision: Gen3
PCI Express Configurations: Dual M.2 slots with PCIe x4 lanes
Removable Memory Card Slot: SDXC with UHS-I support
M.2 Card Slot (wireless): 2230
M.2 Card Slot (storage): 22x42/80, 22x80 I/O Specifications
Number of USB Ports: 13
USB Configuration: F: USB3, 2x USB 3.1g2 (Type A and C) R: 4x USB3, 2x Thunderbolt3 (USB3.1g2) INT: 2x USB2, 2x USB3
USB Revision: 2.0, 3.0, 3.1 Gen2
USB 2.0 Configuration (External + Internal): 0 + 2
USB 3.0 Configuration (External + Internal): 1F, 4R, 2i
Total Number of SATA Ports: 2
Max Number of SATA 6.0 Gb/s Ports: 2
RAID Configuration: 2x M.2 SATA/PCIe SSD (RAID-0 RAID-1)
Audio (back channel + front channel): 7.1 digital L+R+mic (F) L+R+TOSLINK (R)
Integrated LAN: 2x 10/100/1000
Integrated Wireless: Intel Wireless-AC 8265 + Bluetooth 4.2
Integrated Bluetooth: Yes
Consumer Infrared Rx Sensor: Yes
S/PDIF Out Connector: TOSLINK
Additional Headers: CEC, 2x USB2.0, 2x USB 3.0, FRONT_PANEL
Number of Thunderbolt 3 Ports: 2 Package Specifications
Low Halogen Options Available: See MDDS Advanced Technologies
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel vPro Technology: No
TPM No
Intel HD Audio Technology: Yes
Intel Rapid Storage Technology: Yes
Intel Virtualization Technology (VT-x): Yes
Intel Platform Trust Technology (Intel PTT): Yes Security and Reliability
Intel AES New Instructions: Yes Item Dimension (L"xW"xH")
10 x 7 x 5

Weight
3 lbs

Warranty Information
3 year limited
