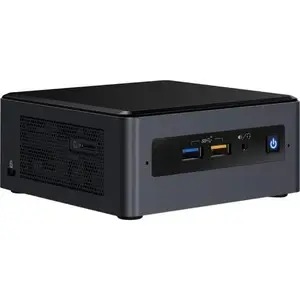

BOXNUC8I7BEK1 - Intel NUC Kit NUC8i7BEK

Essentials Product Collection
Intel NUC Kit with 8th Generation Intel Core^TM Processors Code Name
Products formerly BEAN CANYON Supported Operating Systems
Windows 10, 64-bit Board Number
NUC8BEB Board Form Factor
UCFF (4" x 4") Socket
Soldered-down BGA Internal Drive Form Factor
M.2 SSD Number of Internal Drives Supported
1 Off Roadmap
No Lithography
14 nm TDP
28 W DC Input Voltage Supported
12-19 VDC Processor Included
Intel Core^TM i7-8559U Processor (8M Cache, up to 4.50 GHz) Supplemental Information
Embedded Options Available
No
Description
Other features: Includes Thunderbolt 3 (40Gbps) USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C also includes microSDXC card slot, dual microphones Memory and Storage
Max Memory Size (dependent on memory type)
32 GB
Memory Types
DDR4-2400 1.2V SO-DIMM
Max Number of Memory Channels
2
Max Memory Bandwidth
38.4 GB/s
Max Number of DIMMs
2
ECC Memory Supported
No Processor Graphics
Processor Graphics
Intel Iris Plus Graphics 655
Integrated Graphics
Yes
Graphics Output
HDMI 2.0a USB-C (DP1.2)
Number of Displays Supported
3 Expansion Options
PCI Express Revision
Gen3
PCI Express Configurations
M.2 slot with PCIe X4 lanes
Removable Memory Card Slot
microSDXC with UHS-I support
M.2 Card Slot (storage)
22x42/80 I/O Specifications Number of USB Ports
6
