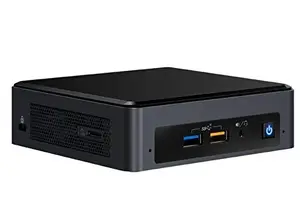

BOXNUC8I5BEKPA1 - Intel I5 NUC 256GB SSD, 8GB MEM, WIN10

Essentials
Product Collection: Intel NUC Mini PC with 8th Generation Intel Core Processors
Code Name: Products formerly BEAN CANYON
Board Form Factor: UCFF (4" x 4")
Socket: Soldered-down BGA
Internal Drive Form Factor: M.2 SSD
Number of Internal Drives Supported: 1
Lithography: 14 nm
TDP: 28 W
DC Input Voltage Supported: 12-19 VDC
Pre-Installed Operating System: Windows 10, 64-bit
Processor Included: Intel Core i5-8259U Processor (6M Cache, up to 3.80 GHz) Supplemental Information
Embedded Options Available: No
Description: Other features: 256GB NVMe SSD and Windows 10, 64-bit Home pre-installed, includes Thunderbolt 3 (40Gbps) USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C also includes microSDXC card slot, dual microphones Memory and Storage
Included Storage: 256GB Intel 760p NVMe SSD
Included Memory: 2x 4GB DDR4-2400
Max Memory Size (dependent on memory type): 32 GB
Memory Types: DDR4-2400 1.2V SO-DIMM
Max Number of Memory Channels: 2
Max Memory Bandwidth: 38.4 GB/s
Max Number of DIMMs: 2
ECC Memory Supported: No Processor Graphics
Integrated Graphics: Yes
Graphics Output: HDMI 2.0a USB-C (DP1.2)
Number of Displays Supported: 3 Expansion Options
PCI Express Revision: Gen3
PCI Express Configurations: M.2 slot with PCIe X4 lanes
Removable Memory Card Slot: microSDXC with UHS-I support
M.2 Card Slot (storage): 22x42/80 I/O Specifications
Number of USB Ports: 6
USB Configuration: 2x front and 3x rear USB 3.1 Gen2 2x USB 2.0 via internal headers
USB Revision: 2.0, 3.1 Gen2
USB 2.0 Configuration (External + Internal): 0 + 2
USB 3.0 Configuration (External + Internal): 2B 2F + 0
Total Number of SATA Ports: 2
Max Number of SATA 6.0 Gb/s Ports: 2
Audio (back channel + front channel): 7.1 digital (HDMI mDP) L+R mic (F)
Integrated LAN: 10/100/1000
Integrated Wireless: Intel Wireless-AC 9560 + Bluetooth 5.0
Integrated Bluetooth: Yes
Consumer Infrared Rx Sensor: Yes
Additional Headers: CEC, 2x USB2.0, FRONT_PANEL
Number of Thunderbolt 3 Ports: 1 Advanced Technologies
Intel Optane Memory Supported: Yes
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel vPro Platform Eligibility: No
TPM: No
Intel HD Audio Technology: Yes
Intel Rapid Storage Technology: Yes
Intel Virtualization Technology (VT-x): Yes
Intel Platform Trust Technology (Intel PTT): Yes Security and Reliability
Intel AES New Instructions: Yes Item Dimension (L"xW"xH")
5 x 1 x 4

Weight
1 lb

Warranty Information
3-year limited
