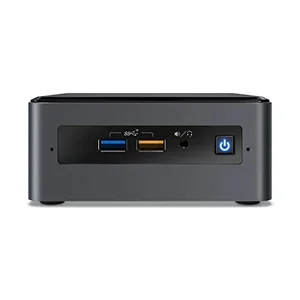

Intel BOXNUC8I5BEH1 NUC KIT BOXNUC8i5BEH1 Corei5-8259U Single pack Retail

Essentials Product Collection
Intel NUC Kit with 8th Generation Intel Core^TM Processors Code Name
Products formerly BEAN CANYON Board Form Factor
UCFF (4" x 4") Socket
Soldered-down BGA Internal Drive Form Factor
M.2 and 2.5" Drive Number of Internal Drives Supported
2 Lithography
14 nm TDP
28 W DC Input Voltage Supported
12-19 VDC Recommended Customer Price
N/A Processor Included
Intel Core^TM i5-8259U Processor (6M Cache, up to 3.80 GHz) Supplemental Information
Embedded Options Available
No
Description
Other features: Includes Thunderbolt 3 (40Gbps) USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C also includes microSDXC card slot, dual microphones Memory and Storage
Max Memory Size (dependent on memory type)
32 GB
Memory Types
DDR4-2400 1.2V SO-DIMM
Max Number of Memory Channels
2
Max Memory Bandwidth
38.4 GB/s
Max Number of DIMMs
2
ECC Memory Supported
No Processor Graphics
Integrated Graphics
Yes
Graphics Output
HDMI 2.0a, USB-C (DP1.2)
Number of Displays Supported
3 Expansion Options
PCI Express Revision
Gen3
PCI Express Configurations
M.2 slot with PCIe X4 lanes
Removable Memory Card Slot
microSDXC with UHS-I support
M.2 Card Slot (storage)
22x42/80 I/O Specifications Number of USB Ports
6 USB Configuration
2x front and 3x rear USB 3.1 Gen2 2x USB 2.0 via internal headers USB Revision
2.0, 3.1 Gen2
