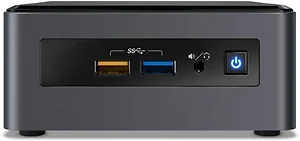

BOXNUC8I3CYSM1 - Intel NUC 8 HOME, A MINI PC WITH WINDOWS 10, INTEL CORE I3, 1TB HDD, 8GB DDR4

Essentials
-Product Collection
Intel NUC Mini PC with 8th Generation Intel Core^TM Processors
-Code Name
Products formerly CRIMSON CANYON
-Board Form Factor
UCFF (4 inch x 4 inch)
-Socket
Soldered-down BGA
-Internal Drive Form Factor
M.2 and 2.5 inch Drive
-Number of Internal Drives Supported
2
-Lithography
10 nm
-TDP
15 W
-DC Input Voltage Supported
12-19 VDC
-Pre-Installed Operating System
Windows 10, 64-bit
-Processor Included
Intel Core^TM i3-8121U Processor (4M Cache, up to 3.20 GHz)
Supplemental Information
-Embedded Options Available
No
-Description
Other features: 1TB 2.5 inch HDD and Windows 10, 64-bit Home pre-installed, includes SDXC card slot
Memory and Storage
-Included Storage
1TB HDD
-Included Memory
8GB LPDDR4-2400
-Max Memory Size (dependent on memory type)
8 GB
-Memory Types
LPDDR4-2400
-Maximum of Memory Channels
2
-Max Memory Bandwidth
42.7 GB/s
-ECC Memory Supported
No
Processor Graphics
-Integrated Graphics
Yes
-Graphics Output
2x HDMI 2.0a
-Number of Displays Supported
2
-Discrete Graphics
Radeon^TM 540, 2GB GDDR5
Expansion Options
-PCI Express Revision
Gen3
-PCI Express Configurations
M.2 slot with PCIe X4 lanes
-Removable Memory Card Slot
SDXC with UHS-I support
-M.2 Card Slot (storage)
22x80
I/O Specifications
-Number of USB Ports
6
-USB Configuration
2x front and 2x rear USB 3.1 Gen1, 2x USB 2.0 via internal headers
-USB Revision
2.0, 3.1 Gen1
-USB 2.0 Configuration (External + Internal)
0 + 2
-Total number of SATA Ports
2
-Maximum of SATA 6.0 Gb/s Ports
2
-RAID Configuration
2.5 inch HDD/SSD + M.2 SATA/PCIe SSD (RAID-0 RAID-1)
-Audio (back channel + front channel)
7.1 digital (HDMI), L+R+mic (F)
-Integrated LAN
10/100/1000
-Integrated Wireless
Intel Wireless-AC MAC
-Integrated Bluetooth
Yes
-Consumer Infrared Rx Sensor
Yes
-Additional Headers
CEC, 2x USB2.0
Advanced Technologies
-Intel Optane^TM Memory Supported
Yes
-Intel Virtualization Technology for Directed I/O (VT-d)
Yes
-Intel vPro^TM Platform Eligibility
No
-TPM
No
-Intel HD Audio Technology
Yes
-Intel Rapid Storage Technology
Yes
-Intel Virtualization Technology (VT-x)
Yes
-Intel Platform Trust Technology (Intel PTT)
Yes
Security and Reliability
- Intel AES New Instructions
Yes
Item Dimension (L inchxW inchxH inch)
6 x 5 x 5
Weight
2.93lb
Warranty Information
3-year limited
