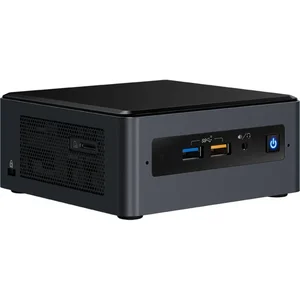

BOXNUC8I3BEH1 - Intel System KIT BOXNUC8i3BEH1 Core i3-8109U Single pack Retail

Essentials
Product Collection: Intel NUC Kit with 8th Generation Intel Core^TM Processors
Code Name: Products formerly BEAN CANYON
Board Form Factor: UCFF (4 inch x 4 inch)
Socket: Soldered-down BGA
Internal Drive Form Factor: M.2 and 2.5 inch Drive
Number of Internal Drives Supported: 2
Lithography: 14 nm
TDP: 28 W
DC Input Voltage Supported: 12-19 VDC
Processor Included: Intel Core^TM i3-8109U Processor (4M Cache, up to 3.60 GHz)
Supplemental Information
Embedded Options Available: No
Description: Other features: Includes Thunderbolt 3 (40Gbps) USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C, also includes microSDXC card slot, dual microphones
Memory and Storage
Max Memory Size (dependent on memory type): 32 GB
Memory Types: DDR4-2400 1.2V SO-DIMM
Max number of Memory Channels: 2
Max Memory Bandwidth: 38.4 GB/s
Max number of DIMMs: 2
ECC Memory Supported: No
Processor Graphics
Integrated Graphics: Yes
Graphics Output: HDMI 2.0a, USB-C (DP1.2)
Number of Displays Supported: 3
Expansion Options
PCI Express Revision: Gen3
PCI Express Configurations: M.2 slot with PCIe X4 lanes
Removable Memory Card Slot: microSDXC with UHS-I support
M.2 Card Slot (storage): 22x42/80
I/O Specifications
Number of USB Ports: 6
USB Configuration: 2x front and 3x rear USB 3.1 Gen2, 2x USB 2.0 via internal headers
USB Revision: 2.0, 3.1 Gen2
USB 2.0 Configuration (External + Internal): 0 + 2
USB 3.0 Configuration (External + Internal): 2B 2F + 0
Total number of SATA Ports: 2
Max number of SATA 6.0 Gb/s Ports: 2
RAID Configuration: 2.5 inch HDD/SSD + M.2 SATA/PCIe SSD (RAID-0 RAID-1)
Audio (back channel + front channel): 7.1 digital (HDMI mDP), L+R mic (F)
Integrated LAN: 10/100/1000
Integrated Wireless: Intel Wireless-AC MAC
Integrated Bluetooth: Yes
Consumer Infrared Rx Sensor: Yes
Additional Headers: CEC, 2x USB2.0, FRONT_PANEL
Number of Thunderbolt^TM 3 Ports: 1
Advanced Technologies
Intel Optane^TM Memory Supported: Yes
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel vPro^TM Platform Eligibility: No
TPM: No
Intel HD Audio Technology: Yes
Intel Rapid Storage Technology: Yes
Intel Virtualization Technology (VT-x): Yes
Intel Platform Trust Technology (Intel PTT): Yes
Security and Reliability
Intel AES New Instructions: Yes
Item Dimension (L inchxW inchxH inch)
10 x 7 x 5
Weight
3.00lb
Warranty Information
3-year limited
