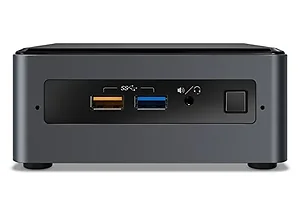

Intel BOXNUC7PJYH1 System NUC KIT BOXNUC7PJYH1 with US Cord Single Pack Brown Box
Special Order Ships in 1-2 weeks
/ 1 Sold Condition: New
$200.12$270.16
Free Shipping for this Item
Product Overview
The NUC7PJYH Kit comes a Pentium Silver processor, with dual Ultra HD 4K display support via two full-sized HDMI* ports, consumer infrared, and a TOSLINK audio jack, they?ve got everything they need to stream media, play, or fnish that last-minute presentation. And with great graphics, you can create robust entry-level digital signage at entry-level prices. Memory, storage and OS not included
Technical Specifications
Essentials Product Collection: Intel NUC Kit with Intel Pentium Processors Code Name: Products formerly JUNE CANYON Board Form Factor: UCFF (4" x 4") Socket: Soldered-down BGA Internal Drive Form Factor: 2.5" Drive Number of Internal Drives Supported: 1 Lithography: 14 nm TDP: 10 W DC Input Voltage Supported: 12-19 VDC Processor Included: Intel Pentium Silver Processor J5005 (4M Cache, up to 2.80 GHz) Supplemental Information Embedded Options Available: No Description: Other features: Includes SDXC card slot, dual microphones Memory and Storage Max Memory Size (dependent on memory type): 8 GB Memory Types: DDR4-2400 1.2V SO-DIMM Max Number of Memory Channels: 2 Max Memory Bandwidth: 38.4 GB/s Max Number of DIMMs: 2 ECC Memory Supported: No Processor Graphics Integrated Graphics: Yes Graphics Output: 2x HDMI 2.0a Number of Displays Supported: 2 Expansion Options Removable Memory Card Slot: SDXC with UHS-I support I/O Specifications Number of USB Ports: 6 USB Configuration: 2x front and 2x rear USB 3.0 2x USB 2.0 via internal headers USB Revision: 2.0, 3.0 USB 2.0 Configuration (External + Internal): 0 + 2 USB 3.0 Configuration (External + Internal): 2B 2F + 0 Total Number of SATA Ports: 1 Max Number of SATA 6.0 Gb/s Ports: 1 RAID Configuration: N/A Audio (back channel + front channel): 7.1 digital L+R+mic (F) L+R+TOSLINK (R) Integrated LAN: 10/100/1000 Integrated Wireless: Intel Wireless-AC MAC Integrated Bluetooth: Yes Consumer Infrared Rx Sensor: Yes S/PDIF Out Connector: TOSLINK Additional Headers: CEC, 2x USB2.0, AUX_PWR, FRONT_PANEL Package Specifications Low Halogen Options Available: See MDDS Advanced Technologies Intel Virtualization Technology for Directed I/O (VT-d): Yes Intel vPro Technology: No TPM: No Intel HD Audio Technology: Yes Security and Reliability Intel AES New Instructions: Yes Item Dimension (L"xW"xH") 5 x 5 x 5
