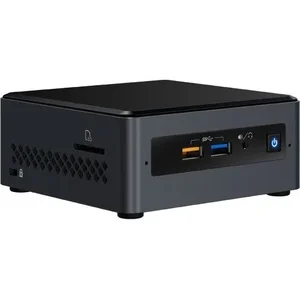

BOXNUC7PJYH - Intel 1PK BOXED NUC KIT NUC7PJYH W/O

Essentials
Product Collection
Intel NUC Kit with Intel Pentium Processors
Code Name
Products formerly JUNE CANYON
Board Form Factor
UCFF (4" x 4")
Socket
Soldered-down BGA
Internal Drive Form Factor
2.5" Drive
Number of Internal Drives Supported
1
Lithography
14 nm
TDP
10 W
DC Input Voltage Supported
12-19 VDC
Processor Included
Intel Pentium Silver J5005 Processor (4M Cache, up to 2.80 GHz) Supplemental Information
Embedded Options Available
No
Description
Other features: Includes SDXC card slot, dual microphones Memory and Storage
Max Memory Size (dependent on memory type)
8 GB
Memory Types
DDR4-2400 1.2V SO-DIMM
Max Number of Memory Channels
2
Max Memory Bandwidth
38.4 GB/s
Max Number of DIMMs
2
ECC Memory Supported
No Processor Graphics
Integrated Graphics
Yes
Graphics Output
2x HDMI 2.0a
Number of Displays Supported
2 Expansion Options
Removable Memory Card
Slot SDXC with UHS-I support I/O Specifications
Number of USB Ports
6
USB Configuration
2x front and 2x rear USB 3.0 2x USB 2.0 via internal headers
USB Revision
2.0, 3.0
USB 2.0 Configuration (External + Internal)
0 + 2
USB 3.0 Configuration (External + Internal)
2B 2F + 0
Total Number of SATA Ports
1
Max Number of SATA 6.0 Gb/s Ports
1
RAID Configuration
N/A
Audio (back channel + front channel)
7.1 digital L+R+mic (F) L+R+TOSLINK (R)
Integrated LAN
Realtek 8111H-CG
Integrated Wireless
Intel Wireless-AC 9462 + Bluetooth 5.0
Integrated Bluetooth
Yes
Consumer Infrared Rx Sensor
Yes
S/PDIF Out Connector
TOSLINK
Additional Headers
CEC, 2x USB2.0, AUX_PWR, FRONT_PANEL Advanced Technologies
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
TPM
No
Intel HD Audio Technology
Yes Security and Reliability
Intel AES New Instructions
Yes Item Dimension (L"xW"xH")
5 x 6 x 5

Weight
2.46 lbs

Warranty Information
3 year limited
