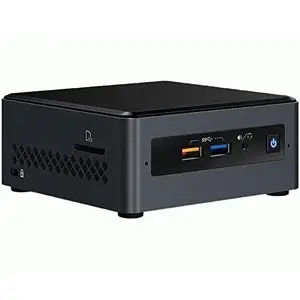

BOXNUC7CJYH1 - Intel NUC Kit BOXNUC7CJYH1 Single Pack Brown Box

Essentials
Product Collection: Intel NUC Kit with Intel Celeron Processors
Code Name: Products formerly JUNE CANYON
Board Form Factor: UCFF (4" x 4")
Socket: Soldered-down BGA
Internal Drive Form Factor: 2.5" Drive
Number of Internal Drives Supported: 1
Lithography: 14 nm
TDP: 10 W
DC Input Voltage Supported: 12-19 VDC
Processor Included: Intel Celeron Processor J4005 (4M Cache, up to 2.70 GHz) Supplemental Information
Embedded Options Available: No
Description: Other features: Includes SDXC card slot, dual microphones Memory and Storage
Max Memory Size (dependent on memory type): 8 GB
Memory Types: DDR4-2400 1.2V SO-DIMM
Max Number of Memory Channels: 2
Max Memory Bandwidth: 38.4 GB/s
Max Number of DIMMs: 2
ECC Memory Supported: No Processor Graphics
Integrated Graphics: Yes
Graphics Output: 2x HDMI 2.0a
Number of Displays Supported: 2 Expansion Options
Removable Memory Card Slot: SDXC with UHS-I support I/O Specifications
Number of USB Ports: 6
USB Configuration: 2x front and 2x rear USB 3.0 2x USB 2.0 via internal headers
USB Revision: 2.0, 3.0
USB 2.0 Configuration (External + Internal): 0 + 2
USB 3.0 Configuration (External + Internal): 2B 2F + 0
Total Number of SATA Ports: 1
Max Number of SATA 6.0 Gb/s Ports: 1
RAID Configuration: N/A
Audio (back channel + front channel): 7.1 digital L+R+mic (F) L+R+TOSLINK (R)
Integrated LAN: 10/100/1000
Integrated Wireless: Intel Wireless-AC MAC
Integrated Bluetooth: Yes
Consumer Infrared Rx Sensor: Yes
S/PDIF Out Connector: TOSLINK
Additional Headers: CEC, 2x USB2.0, AUX_PWR, FRONT_PANEL Package Specifications
Low Halogen Options Available: See MDDS Advanced Technologies
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel vPro Technology: No
TPM: No
Intel HD Audio Technology: Yes Security and Reliability
Intel AES New Instructions: Yes Item Dimension (L"xW"xH")
5 x 5 x 5

Weight
2.46 lbs

Warranty Information
3-year limited
