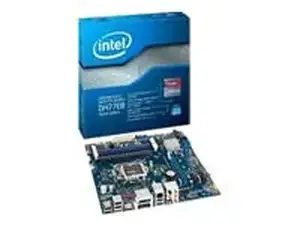

| Product Description | Intel Desktop Board DH77EB - Media Series - motherboard - micro ATX - LGA1155 Socket - H77 |
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel H77 Express |
| Processor Socket | 1 x LGA1155 Socket |
| Compatible Processors | Core i5, Core i3, Core i7 |
| Max RAM Size | 32 GB |
| RAM Supported | 4 DIMM slots - DDR3 , non-ECC |
| Storage Ports | 2 x SATA-600 (RAID), 3 x SATA-300 (RAID), 1 x eSATA-300 |
| USB / FireWire Ports | 2 x USB 3.0 + 4 x USB 2.0 + ( 2 x USB 3.0 + 6 x USB 2.0 via headers ) |
| Audio | HD Audio (10-channel) |
| LAN | Gigabit Ethernet |
| Microsoft Certification | Compatible with Windows 7 |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | 3 years warranty |
| General |
| Motherboard - micro ATX | | | Intel H77 Express | | | LGA1155 Socket | | | 1 | | | Core i5, Core i3, Core i7 | | |
| Supported RAM |
| 32 GB | | | DDR3 | | | 1600 MHz, 1333 MHz, 1066 MHz | | | Non-ECC | | | Dual channel memory architecture | | |
| Audio |
| HD Audio (10-channel) | | | Realtek ALC892 | | | High Definition Audio | | |
| LAN |
| Intel 82579V | | | Gigabit Ethernet | | |
| Expansion / Connectivity |
1 x CPU
4 x DIMM 240-pin ( 1.5 V )
1 x PCIe 3.0 x16
3 x PCIe 2.0 x1
1 x PCIe Mini Card | | SATA-300 - connector(s): 4 x 7pin Serial ATA - 3 device(s) - RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-600 - connector(s): 4 x 7pin Serial ATA - 2 device(s) - RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-300 - connector(s): 1 x 7pin external SATA - 1 device(s) | | | Intel Rapid Storage Technology | | 1 x DVI-I
1 x HDMI
1 x DisplayPort
4 x USB 2.0
2 x USB 3.0
1 x LAN (Gigabit Ethernet)
1 x TOSLINK
1 x audio line-out (rear) - mini-jack
1 x audio line-out (center/subwoofer) - mini-jack
1 x audio line-in - mini-jack
1 x audio line-out - mini-jack
1 x audio line-out/microphone - mini-jack | | 1 x SPDIF out
6 x USB 2.0
2 x USB 3.0 | | | 4-pin ATX12V connector, 24-pin main power connector | | |
| Features |
| Intel | | | ACPI support, DMI support, SMBIOS support, Wfm support | | | RTC (real-time clock) wake up, suspend to RAM (STR), wake on LAN (WOL), wake on PCI device, wake on USB port, wake on infrared | | | Chassis intrusion detection | | |
| Miscellaneous |
| "Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. | | | FCC Class B certified, VCCI, BSMI, EN55022, EN55024, CISPR 22, RoHS, UL 60950-1, IEC 60950-1, KCC, ACA | | | 9.6 in | | | 9.6 in | | | Bulk | | |
| Environmental Standards |
| |
| Manufacturer Warranty |
| 3 years warranty | | | Limited warranty - 3 years | | |
