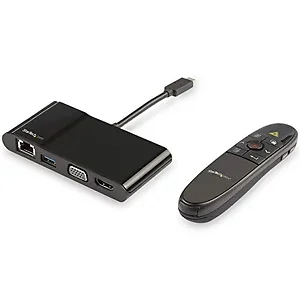

BNDDKTCHVPRS - Startech AC BNDDKTCHVPRS USB-C Multiport Adapter w Wireless Presenter Remote

Hardware
4K Support
Yes
Bus Type
USB-C
Chipset ID
Cypress - CYPD2122
Cypress - CYUSB3314
STMicroelectronics - STDP2650
Chrontel - CH7517
ASIX - AX88179
Displays Supported
1
Fast-Charge Port(s)
No
Industry Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0 and 1.1 Performance
Auto MDIX
Yes
Compatible Networks
10/100/1000 Mbps
Full Duplex Support
Yes
Maximum Analog Resolutions
2048 x 1280p - 30Hz (VGA)
Maximum Data Transfer Rate
5 Gbps (USB 3.0)
2 Gbps (Ethernet Full-Duplex)
Maximum Digital Resolutions
3840 x 2160p - 30Hz (HDMI)
Lower resolutions are also supported.
Remote Color
Black
Remote Humidity
30%-80% RH
Remote Interface
USB
Remote Max Distance
27 m (90 ft.)
Remote Operating Temperature
5^oC to 45^oC (41^oF to 113^oF)
Remote Optical Power
1mW
Remote Power
Battery Powered
Remote Storage Temperature
5^oC to 45^o (41^oF to 113^oF)
Remote Wavelength
650+20 mm
Remote Wireless Band
2.4 GHz
Type and Rate USB
3.0 - 5 Gbit/s
UASP Support
Yes Connector(s)
Connector Type(s)
1 - USB Type-C (24 pin) USB 3.0 (5Gbps) Male
1 - HDMI (19 pin) Female
1 - VGA (15 pin, High Density D-Sub) Female
1 - RJ-45 Female
1 - USB Type-A (9 pin) USB 3.0 Female Software
OS Compatibility
Windows 7, 8, 8.1, 10
macOS 10.10 to 10.14
Chrome OS Special Notes / Requirements
Note
For MacBook host systems using macOS 10.12, version 10.12.6 or later is required to support this product.
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your laptop USB-C port supports DP alt mode.
Only one video output port can be used at the same time (HDMI or VGA). If two displays are connected, the HDMI port takes priority.
A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K).
USB 3.0 is also known as USB 3.1 Gen 1 this connectivity standard offers speeds up to 5Gbps.
The remote is a class 2 laser product
The USB-C port on your host must support DP Alt mode
System and Cable Requirements
Host laptop with an available USB-C port (to ensure full functionality, the laptops USB-C port must support DP alt mode). Power
Power Source
USB-Powered Environmental
Humidity
5-95% RH (Non-condensing)
Operating Temperature
5^oC to 35^oC (41^oF to 95^oF)
Storage Temperature
-40^oC to 70^oC (-40^oF to 158^oF) Item Dimension (L"xW"xH")
9 x 5 x 2

Weight
1 lb

Warranty Information
3 Year Warranty
