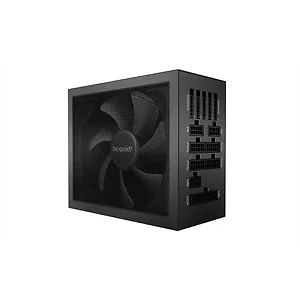

Be Quiet BN656 Dark Power 12 750W, 80 PLUS Titanium efficiency, power supply, ATX, modular, virtually inaudible Silent W

Specifications

• Mfr Part Number: BN656
• Features:
  • 80 PLUS Titanium efficiency (up to 95.9%)

  • Patented frameless Silent Wings fan for virtually inaudible operation
  • Revolutionary full mesh PSU front with redesigned funnel shape air inlet upholds the high air circulation abilities

  • Overclocking key switches between four 12V rails and one massive 12V rail

  • Modular cable management for highest convenience

  • Active Rectifier + full bridge LLC technology provides unmatched signal stability and extremely high power efficiency

  • Up to eight PCI express connectors for overclocked high-end GPUs

  • Wire-free design inside the PSU for enhanced cooling and longevity

  • Japanese 105°C capacitors ensure highest stability and reliability

  • Ten-year manufacturerâ??s warranty
• Power:
  • Continuous Power: 750W
  • Peak Power: 800W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 9 - 4.5 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V v2.52 / EPS12V v2.92
• Fan: 135mm Silent Wings FDB Fan
• Output: +3.3V @ 22A, +5V @ 22A, +12V1 @ 25A, +12V2 @ 25A, +12V3 @ 30A, +12V4 @ 30A, ,+12V5 @ -A, +12V6 @ -A, +5VSB @ 3A, -12V @ 0.5A
• Connectors: 1x 20+4-pin ATX Main Connector, 1x 8-pin CPU Power Connector, 1x 4+4-pin CPU Power Connector, 6 x PCI-E 6+2-pin (GPU) ,5x PATA 4-pin,12 x SATA 15-pin (HDD, Drives) ,1 x FDD (Floppy)
• Protection: OCP/ OVP/ UVP/ SCP/ OTP/ OPP
• Approvals: TUV, CE, CB, FCC, cTUVus,RCM (Australia) ,BSMI,CU (Russia) ,CCC, RoHS
• Color: Black
• Dimensions (WxLxD): 175 x 150 x 86mm
• Weight: 1.96 kg
