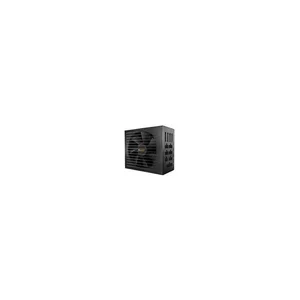

Be Quiet BN644 ! Straight Power 11 Platinum 1000W Fully Modular PSU

Specifications

• 80 PLUS Platinum efficiency: Up to 93.8%
• Cooling: Virtually inaudible Silent Wings 3 135mm fan
• Airflow: Funnel-shaped fan opening for high intake
• Cabling: Wire-free design on the DC side for enhanced cooling
• Modularity: Fully modular cables for flexible builds
• Multi-GPU Support: Dual PCI-Express connectors
• Capacitors: Japanese 105°C-rated for reliability
• Compliance: ErP and Energy Star 7.0 ready
• Warranty: 5-year warranty
• Power Ratings: Continuous power of 1000W, peak power of 1070W
• Input Specifications:
  • Voltage: 100 ~ 240 VAC
  • Current: 13 - 6.5 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V v2.51 / EPS12V v2.92
• Power Factor Correction: Active PFC
• Output: +3.3V @ 25A, +5V @ 25A, +12V1 @ 22A, +12V2 @ 22A, +12V3 @ 38A, +12V4 @ 38A, +5VSB @ 3A, -12V @ 0.5A
• Connectors:
  • 1x 20+4-pin ATX Main Connector
  • 1x P8 CPU Connector
  • 1x P4+4 CPU Connectors
  • 6x 6+2pin GPU PCI-Express Connectors
  • 11x 15-pin SATA Connectors
  • 4x 4-pin PATA Connectors
  • 1x Floppy Connector
• Protection Features: OCP / OVP / UVP / SCP / OTP / OPP
• Approvals: CE, CB, TUV, FCC, cTUVus, RCM, BSMI, CU, ErP, WEEE, RoHS
• Color: Black
• Dimensions: 150.0 x 170.0 x 860.0 mm
• Weight: 1.87 kg
