Technical Specifications
Network Standard
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IPv4, IPv6 Product Segment
AC2600 ultimate AC performance : 800+1734 Mbps Coverage
Large homes Data Rate
802.11n: up to 600 Mbps
802.11n TurboQAM: up to 800 Mbps
802.11ac: up to 1734 Mbps Antenna
Internal antenna x 4 Transmit/Receive
2.4 GHz 4 x 4
5 GHz 4 x 4 Memory
128 MB Flash
512 MB RAM Operating Frequency
2.4 GHz / 5 GHz Encryption
WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support Firewall and Access Control
Firewall: SPI intrusion detection,DoS protection
Access control: Parental control, Network service filter, URL filter, Port filter WAN Connection Type
Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP Ports
RJ45 for 10/100/1000/Gigabits BaseT for LAN x 4, RJ45 for 10/100/1000/Gigabits BaseT for WAN x 1
USB 3.0 x 1 Button
WPS Button, Reset Button, Power Button Features
Router app
Airtime Fairness
Traffic Analyzer
SmartQoS
- WMM
- User definable rules for IP/MAC/Port
- Upload and download bandwidth management
- ACK/SYN/FIN/RST/ICMP with highest priority
AiProtection
Parental Control
Guest Network : 2.4 GHz x 3, 5 GHz x 3
VPN server : PPTP Pass-Through, PPTP Server, OpenVPN Server
VPN client : PPTP client, OpenVPN client
VPN Pass-Though :PPTP
Mac OS Backup
Enhanced media server (AiPlayer app compatible)
- Image: Jpeg
- Audio: mp3, wma, wav, pcm, mp4, lpcm, ogg
- Video: asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
AiCloud personal cloud service
3G/4G data sharing
Printer Server
- Multifunctional printer support (Windows only)
- LPR protocol support
Download Master
- Support bt, nzb, http, ed2k
- Support encryption, DHT, PEX and magnet link
- Upload and download bandwidth control
- Download scheduling
AiDisk file server
- Samba and FTP server with account management
IPTV support Power Supply
AC Input : 110V to 240V(50 to 60Hz)
DC Output : 19 V with max. 1.75 A current OS Support
Windows 10
Windows 8
Windows 8.1
Windows 7
Windows Vista
Windows 2000
Windows ME
Windows XP
Windows Server 2003
Windows Server 2008
Mac OS X 10.1
Mac OS X 10.4
Mac OS X 10.5
Mac OS X 10.6
Mac OS X 10.7
Mac OS X 10.8
Mac OS X
Linux Kernel (Support Ubuntu only)
Linux Package Content

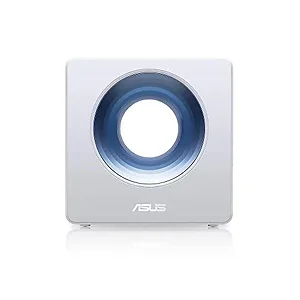

1 x Blue Cave Wireless-AC2600 Dual Band Gigabit Router
1 x RJ-45 cable
1 x Power adapter
1 x QSG Operation mode
Wireless router mode
Access point mode
Media bridge mode Item Dimension ( L inchxW inchxH inch)
8 x 8 x 8 Weight
4.00 lb
