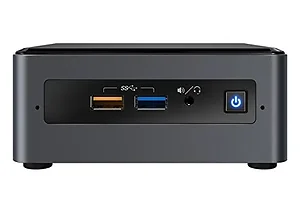

Intel BLKNUC7I7DNH1E System NUC KIT BLKNUC7i7DNH1E Core i7-8650U Single Pack Retail

Essentials
Product Collection: Intel NUC Kit with Intel Pentium Processors
Code Name: Products formerly JUNE CANYON
Board Form Factor: UCFF (4" x 4")
Socket: Soldered-down BGA
Internal Drive Form Factor: M.2 and 2.5" Drive
Number of Internal Drives Supported: 2
Lithography: 14 nm
TDP: 15 W
DC Input Voltage Supported: 12-24 VDC Supplemental Information
Embedded Options Available: Yes
Description: Other features: 8th Gen Commercial Intel NUC Memory and Storage
Max Memory Size (dependent on memory type): 32 GB
Memory Types: DDR4-2400 1.2V SO-DIMM
Max Number of Memory Channels: 2
Max Number of DIMMs: 2
ECC Memory Supported: No Processor Graphics
Integrated Graphics: Yes
Graphics Output: Dual HDMI 2.0a, 4-lane eDP 1.4
Number of Displays Supported: 2 Expansion Options
PCI Express Revision : Gen 3
PCI Express Configurations : PCIe x4: M.2 22x80 (key M) slot PCIe x1: M.2 22x30 (key E) slot
M.2 Card Slot (wireless) : 22x30 (key E) slot
M.2 Card Slot (storage) : 22x80 (key M) slot I/O Specifications
Number of USB Ports : 4
USB Configuration : 2x front and 2x rear USB 3.0 1x USB 3.0 and 2x USB 2.0 via internal headers
USB Revision : 2.0, 3.0
USB 2.0 Configuration (External + Internal) : 0 + 2
USB 3.0 Configuration (External + Internal) : 2B 2F +1
Total Number of SATA Ports : 2
Max Number of SATA 6.0 Gb/s Ports : 2
RAID Configuration : 2.5" HDD/SSD + M.2 SATA/PCIe SSD (RAID-0 RAID-1)
Serial Port via Internal Header : Yes
Integrated LAN : Intel i219-LM 10/100/1000 Mbps Ethernet
Integrated Wireless : Intel Wireless-AC 8265 vPro (IEEE 802.11ac 2x2)
Integrated Bluetooth : Yes
Additional Headers : Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby) HDMI_CEC Internal 2x2 power connector Package Specifications
Low Halogen Options Available : See MDDS Advanced Technologies
Intel Optane^TM Memory Supported : Yes
Intel Virtualization Technology for Directed I/O (VT-d) : Yes
Intel vPro^TM Technology : Yes
Intel ME Firmware Version : v11.8
TPM : Yes
TPM Version : 2.0
Intel Rapid Storage Technology : Yes
Intel Virtualization Technology (VT-x) : Yes
Intel Platform Trust Technology (Intel PTT) : No Security and Reliability
Intel AES New Instructions : Yes
Intel Trusted Execution Technology : Yes Item Dimension (L inchxW inchxH inch)
6 x 5 x 5 Weight
1.00 lb Warranty Information
3-year limited
