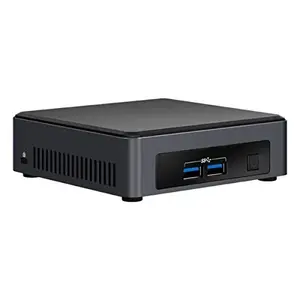

BLKNUC7I5DNKPU1 - Intel NUC7 BUS MINIPC W/I5 VPRO 256GB

Essentials
Product Collection
Intel NUC Mini PC with 7th Generation Intel Core Processors
Supported Operating Systems
Windows 10, 64-bit, Windows 10 IoT Enterprise, Windows Server 2016
Board Number
NUC7i5DNB
Board Form Factor
UCFF (4" x 4")
Socket
Soldered-down BGA
Internal Drive Form Factor
M.2 SSD
Number of Internal Drives Supported
1
TDP
15 W
DC Input Voltage Supported
12-24 VDC
Pre-Installed Operating System
Windows 10, 64-bit
Processor Included
Intel Core i5-7300U Processor (3M Cache, up to 3.50 GHz)
Intel vPro Platform Eligibility
Yes
Number of Cores
2
Number of Threads
4
Processor Base Frequency
2.60 GHz
Max Turbo Frequency
3.50 GHz Supplemental Information
Embedded Options Available
No
Description
7th Gen Commercial Intel NUC with 8GB dual-channel RAM, 256GB NVMe SSD and Windows 10 Pro for Intel Unite Memory and Storage
Included Storage
256GB NVMe SSD
Included Memory
2x 4GB DDR4
Max Memory Size (dependent on memory type)
32 GB
Memory Types
DDR4-2133 1.2V SO-DIMM
Max Number of Memory Channels
2
Max Number of DIMMs
2
ECC Memory Supported
No Processor Graphics
Processor Graphics
Intel HD Graphics 620
Integrated Graphics
Yes
Graphics Output
Dual HDMI 2.0a, 4-lane eDP 1.4
Number of Displays Supported
2 Expansion Options
PCI Express Revision
Gen 3
PCI Express Configurations
PCIe x4: M.2 22x80 (key M) slot PCIe x1: M.2 22x30 (key E) slot
M.2 Card Slot (wireless)
22x30 (key E) slot
M.2 Card Slot (storage)
22x80 (key M) slot I/O Specifications
Number of USB Ports
4
USB Configuration
2x front and 2x rear USB 3.0 1x USB 3.0 and 2x USB 2.0 via internal headers
USB Revision
2.0, 3.0
USB 2.0 Configuration (External + Internal)
0 + 2
USB 3.0 Configuration (External + Internal)
2B 2F +1
Total Number of SATA Ports
2
Max Number of SATA 6.0 Gb/s Ports
2
RAID Configuration
N/A
Serial Port via Internal Header
Yes
Integrated LAN
Intel i219-LM 10/100/1000 Mbps Ethernet
Integrated Wireless
Intel Wireless-AC 8265 vPro (IEEE 802.11ac 2x2)
Integrated Bluetooth
Yes
Additional Headers
Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby) HDMI_CEC Internal 2x2 power connector Advanced Technologies
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel vPro Platform Eligibility
Yes
Intel ME Firmware Version
v11.7
TPM
Yes
TPM Version
2.0
Intel Rapid Storage Technology
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Platform Trust Technology (Intel PTT)
No Security and Reliability
Intel AES New Instructions
Yes
Intel Trusted Execution Technology
Yes Item Dimension (L"xW"xH")
6 x 5 x 4

Weight
2.70 lbs

Warranty Information
3-year limited
