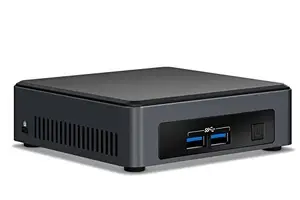

BLKNUC7I3DNKTC1 - Intel I3 128GB, 4GB MEM, WIN10 PRO

Essentials
Product Collection :
Intel NUC Mini PC with 7th Generation Intel Core^TMProcessors
Code Name :
Products formerly Dawson Canyon
Status :
Launched
Board Form Factor :
UCFF (4" x 4")
Socket :
Soldered-down BGA
Internal Drive Form Factor :
M.2 SSD
Number of Internal Drives Supported :
1
TDP :
15 W
DC Input Voltage Supported :
12-24 VDC
Recommended Customer Price :
N/A
Pre-Installed Operating System :
Windows 10, 64-bit
Processor Included :
Intel Core^TM i3-7100U Processor (3M Cache, 2.40 GHz) Supplemental Information
Embedded Options Available :
Yes
Description :
7th Gen Commercial Intel NUC with 4GB RAM, 128GB SSD and Windows 10 Pro Memory and Storage
Included Storage :
128GB SSD
Included Memory :
1x 4GB DDR4
Max Memory Size (dependent on memory type) :
32 GB
Memory Types :
DDR4-2133 1.2V SO-DIMM
Max Number of Memory Channels :
2
Max Number of DIMMs :
2
ECC Memory Supported :
No Processor Graphics
Integrated Graphics :
Yes
Graphics Output :
Dual HDMI 2.0a, 4-lane eDP 1.4
Number of Displays Supported :
2
Expansion Options
PCI Express Revision :
Gen 3
PCI Express Configurations :
PCIe x4: M.2 22x80 (key M) slot PCIe x1: M.2 22x30 (key E) slot
M.2 Card Slot (wireless) :
22x30 (key E) slot
M.2 Card Slot (storage) :
22x80 (key M) slot I/O Specifications
Number of USB Ports :
4
USB Configuration :
2x front and 2x rear USB 3.0 1x USB 3.0 and 2x USB 2.0 via internal headers
USB Revision :
2.0, 3.0
USB 2.0 Configuration (External + Internal) :
0 + 2
USB 3.0 Configuration (External + Internal) :
2B 2F +1
Total Number of SATA Ports :
2
Max Number of SATA 6.0 Gb/s Ports :
2
RAID Configuration :
N/A
Serial Port via Internal Header :
Yes
Integrated LAN :
Intel i219-LM 10/100/1000 Mbps Ethernet
Integrated Wireless :
Intel Wireless-AC 8265 + Bluetooth 4.2
Integrated Bluetooth :
Yes
Additional Headers :
Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby) HDMI_CEC Internal 2x2 power connector Package Specifications
Low Halogen Options Available :
See MDDS Advanced Technologies
Intel Virtualization Technology for Directed I/O (VT-d) :
Yes
Intel vPro^TM Technology :
No
Intel ME Firmware Version :
v11.7
TPM :
No
Intel Rapid Storage Technology :
Yes
Intel Virtualization Technology (VT-x) :
Yes
Intel Platform Trust Technology (Intel PTT) :
Yes Security and Reliability
Intel AES New Instructions :
Yes
Intel Trusted Execution Technology :
No Item Dimension ( L inch x W inch x H inch)
5 x 5 x 5
Weight
1.00lb
Warranty Information
3-year limited
