BLKDQ57TM?10PK - Intel 10 PACK MINI ATX MOTHERBOARD S1156 SATA DDR3 VIDEO DVI VPRO GIG ETHERNET

10PK MATX MBD S1156 SATA DDR3 VID DVI VPRO GETH
The best business solutions combine great hardware and software that help businesses achieve maximum productivity at lower costs. The Intel Desktop Board DQ57TM brings all of these things together in an easy-to-integrate and energy-efficient package.

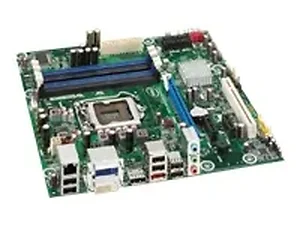

Product Description Intel Desktop Board DQ57TM Executive Series - motherboard - micro ATX - iQ57
Packaged Quantity 10 (specifications are for single item)
Product Type Motherboard
Form Factor Micro ATX
Dimensions (WxDxH) 9.6 in x 9.6 in
Chipset Type Intel Q57 Express
Multi-Core Support Dual-Core / Quad-core
Max Bus Speed 1333 MHz
Processor 0 ( 1 ) - LGA1156 Socket
Compatible Processors Core i5, Core i3, Core i7
64-bit Processors Compatibility Yes
RAM 0 MB (installed) / 16 GB (max)
Supported RAM Technology DDR3 SDRAM
Supported RAM Integrity Check Non-ECC
Storage Controller Serial ATA-300
USB Ports Configuration 14 x USB
Storage Ports Configuration 4 x SATA, 2 x eSATA
Audio Output Sound card - 5.1 channel surround
Networking Network adapter - Intel 82567LM - Ethernet, Fast Ethernet, Gigabit Ethernet
Microsoft Certification Compatible with Windows 7
Environmental Standards ENERGY STAR Qualified
Manufacturer Warranty 3 years warranty
General
Product Type Motherboard
Form Factor Micro ATX
Width 9.6 in
Depth 9.6 in
Compatible Processors Core i5, Core i3, Core i7
64-bit Processors Compatibility Yes
Processor Socket LGA1156 Socket
Multi-Core Support Dual-Core / Quad-core
Chipset Type Intel Q57 Express
Max Bus Speed 1333 MHz
BIOS Type Intel
Storage Controller Serial ATA-300
Processor
Installed Qty (Max Supported) 0 ( 1 )
Memory
Supported RAM Technology DDR3 SDRAM
Supported RAM Integrity Check Non-ECC
RAM Installed ( Max ) 0 MB / 16 GB (max)
Supported RAM Speed PC3-10600, PC3-8500
RAM Features Unbuffered, dual channel memory architecture
Audio
Audio Output Sound card
Audio Codec Realtek ALC662-VC
Sound Output Mode 5.1 channel surround
Compliant Standards High Definition Audio
Telecom / Networking
Networking Network adapter - Intel 82567LM - Ethernet, Fast Ethernet, Gigabit Ethernet
Features
BIOS Features ACPI support, DMI 2.0 support
Hardware Monitoring Chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage
Sleep / Wake Up Keyboard wake up, suspend to RAM (STR), wake on LAN (WOL), mouse wake up, wake on PCI device, wake on USB port
Hardware Features Trusted Platform Module (TPM) 1.2, Intel Quiet System Technology, Intel Active Management Technology (Intel AMT)
Expansion / Connectivity
Expansion Slot(s)[ processor - LGA1156 Socket 4 memory - DIMM 240-pin 2 PCI Express 2.0 x1 1 PCI Express 2.0 x16 1 PCI
Storage Interfaces Serial ATA-300 - connector(s): 5 x 7pin Serial ATA - 5 device(s) Serial ATA-300 - connector(s): 1 x 7pin external SATA - 1 device(s)
Interfaces` x Hi-Speed USB - 4 pin USB Type A 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x display / video - DVI-Analog/Digital - 29 pin combined DVI 1 x display / video - DVI-Digital - 24 pin digital DVI 1 x audio - line-in - mini-phone 3.5 mm 1 x microphone - input - mini-phone 3.5 mm 1 x audio - line-out - mini-phone stereo 3.5 mm 1 x display / video - DisplayPort - 20 pin DisplayPort 1 x storage - eSATA-300
Additional Connectors (Optional) 8 x Hi-Speed USB
Miscellaneous
