Technical Specifications

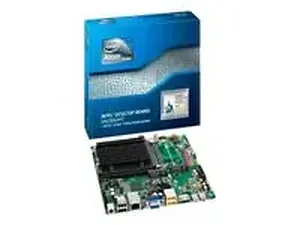

10PK MBD ATOM N2800 LP MITX DDR3 VGA HDMI
Intel Desktop Board DN2800MT is integrated with the Intel Atom processor D2800 and the Intel NM10 express chipset to offer a thin mini-ITX desktop computer system. The board features a 10/100/1000 integrated Intel LAN, 1080 high-definition playback with HDMI, and Intel High Definition Audio (Intel HD Audio). With the low-power silicon, the Intel Desktop Board DN2800MT can be used in chassis that require no fan for heat dissipation. This board is designed for ultra small form factor and all-in-one chassis. While this desktop board is small in size, it delivers a rich multimedia and Internet experience with the support of 1080 high-definition video playback.
Intel Desktop Board DN2800MT Innovation Series - Motherboard - mini ITX - Intel Atom N2800 - NM10 - Gigabit Ethernet - onboard graphics - HD Audio (4-channel)
*
MAIN SPECIFICATIONS
Product Description Intel Desktop Board DN2800MT Innovation Series - motherboard - mini ITX - Intel Atom N2800 - NM10
Product Type Motherboard - mini ITX
Processor Intel Atom N2800 / 1.86 GHz ( Dual-Core )
Chipset Type Intel NM10 Express
Max Supported Memory 4 GB
RAM Supported 2 DIMM slots - DDR3 SDRAM , non-ECC
Storage Ports 2 x SATA-300
USB / FireWire Ports 4 x Hi-Speed USB + (4 x Hi-Speed USB via headers)
Graphics Intel GMA 3650
Audio HD Audio (4-channel)
LAN Gigabit Ethernet
Environmental Standards ENERGY STAR Qualified
Manufacturer Warranty 3 years warranty
General
Product Type Motherboard - mini ITX
Processor Intel Atom N2800 / 1.86 GHz ( Dual-Core )
Cache Memory L2 - 1 MB
Chipset Type Intel NM10 Express
Memory
Max Supported Memory 4 GB
Supported RAM Technology DDR3 SDRAM
Supported RAM Speed 1066 MHz, 800 MHz
Supported RAM Integrity Check Non-ECC
Graphics
Graphics Controller Intel GMA 3650
Audio
Type HD Audio (4-channel)
Audio Codec Realtek ALC888S
Compliant Standards High Definition Audio
LAN
Network Controller Intel 82574L
Network Interfaces Gigabit Ethernet
Expansion / Connectivity
Expansion Slot(s)\ x memory - SO DIMM 204-pin 2 x PCI Express Mini Card 1 x PCI Express 2.0 x1
Storage Interfaces Serial ATA-300 - connector(s): 2 x 7pin Serial ATA - 2 device(s)
Interfaces^ x Hi-Speed USB - 4 pin USB Type A 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x audio - line-out/headphones - mini-phone stereo 3.5 mm 1 x microphone - input - mini-phone 3.5 mm 1 x display / video - VGA output - 15 pin D-Sub (DB-15) 4 x Hi-Speed USB ( internal )
Features
BIOS Type Intel
BIOS Features Hyper-Threading Technology
Miscellaneous
Compliant Standards EN55022, ICES-003, EN55024, CISPR 22, EMC, RoHS, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, BSMI CNS 13438, FCC CFR47 Part 15 B, ErP Ready, CAN/CSA C22.2 No. 60950-1, VCCI V-3
Width 6.7 in
Depth 6.7 in
Package Type Bulk
Environmental Standards
ENERGY STAR Qualified Yes
Manufacturer Warranty
Service & Support 3 years warranty
Service & Support Details Limited warranty - 3 years
