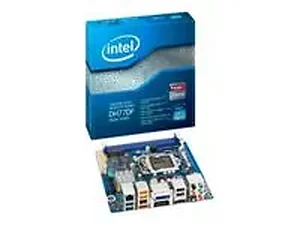

Intel Desktop Board DH77DF Media Series - Motherboard - mini ITX - LGA1155 Socket - H77 - USB 3.0, FireWire - Gigabit Ethernet - onboard graphics (CPU required) - HD Audio (10-channel)
*
MAIN SPECIFICATIONS
Product Description Intel Desktop Board DH77DF Media Series - motherboard - mini ITX - LGA1155 Socket - H77
Product Type Motherboard - mini ITX
Chipset Type Intel H77 Express
Processor Socket 1 x LGA1155 Socket
Compatible Processors Core i5, Core i3, Core i7
Max Supported Memory 16 GB
RAM Supported 2 DIMM slots - DDR3 SDRAM , non-ECC
Storage Ports 2 x SATA-600 (RAID), 2 x SATA-300 (RAID), 1 x eSATA-300
USB / FireWire Ports 2 x SuperSpeed USB + 1 x FireWire + 4 x Hi-Speed USB + (2 x SuperSpeed USB + 1 x FireWire + 6 x Hi-Speed USB via headers)
Audio HD Audio (10-channel)
LAN Gigabit Ethernet
Microsoft Certification Compatible with Windows 7
Environmental Standards ENERGY STAR Qualified
Manufacturer Warranty 3 years warranty
General
Product Type Motherboard - mini ITX
Chipset Type Intel H77 Express
Processor Socket LGA1155 Socket
Max Processors Qty 1
Compatible Processors Core i5, Core i3, Core i7
Memory
Max Supported Memory 16 GB
Supported RAM Technology DDR3 SDRAM
Supported RAM Speed 1600 MHz, 1333 MHz, 1066 MHz
Supported RAM Integrity Check Non-ECC
RAM Features Dual channel memory architecture
Audio
Type HD Audio (10-channel)
Audio Codec Realtek ALC898
Compliant Standards High Definition Audio
LAN
Network Controller Intel 82579V
Network Interfaces Gigabit Ethernet
Expansion / Connectivity
Expansion Slot(s)[ x processor - LGA1155 Socket 2 x memory ( 1.5 V ) - DIMM 240-pin 1 x PCI Express 3.0 x16 1 x PCI Express Mini Card
Storage Interfaces Serial ATA-300 - connector(s): 4 x 7pin Serial ATA - 2 device(s) - RAID 0 / RAID 1 / RAID 10 / RAID 5 Serial ATA-600 - connector(s): 4 x 7pin Serial ATA - 2 device(s) - RAID 0 / RAID 1 / RAID 10 / RAID 5 Serial ATA-300 - connector(s): 1 x 7pin external SATA - 1 device(s)
RAID Features Intel Rapid Storage Technology
Interfaces[ x display / video - DVI-Analog/Digital - 29 pin combined DVI 1 x display / video - HDMI - 19 pin HDMI Type A 1 x display / video - DisplayPort - 20 pin DisplayPort 4 x Hi-Speed USB - 4 pin USB Type A 2 x SuperSpeed USB 3.0 - 9 pin USB Type A 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x audio - SPDIF output - TOSLINK 1 x audio - line-out (rear) - mini-phone stereo 3.5 mm 1 x audio - line-out (center/subwoofer) - mini-phone stereo 3.5 mm 1 x audio - line-in - mini-phone stereo 3.5 mm 1 x audio - line-out - mini-phone stereo 3.5 mm 1 x audio - line-out/microphone - mini-phone stereo 3.5 mm 1 x audio - SPDIF output ( internal ) 6 x Hi-Speed USB ( internal ) 2 x SuperSpeed USB 3.0 ( internal ) 1 x IEEE 1394 (FireWire) - 6 pin FireWire 1 x IEEE 1394 (FireWire) ( internal )
Power Connectors 4-pin ATX12V connector, 24-pin main power connector
Features
BIOS Type Intel
BIOS Features ACPI support, DMI support, SMBIOS support, Wfm support
Sleep / Wake Up RTC (real-time clock) wake up, suspend to RAM (STR), wake on LAN (WOL), wake on PCI device, wake on USB port, wake on infrared
Hardware Features Chassis intrusion detection
Miscellaneous
Compatible with Windows 7 "Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
Compliant Standards FCC Class B certified, VCCI, BSMI, EN55022, EN55024, CISPR 22, RoHS, UL 60950-1, IEC 60950-1, KCC, ACA
Width 6.7 in
Depth 6.7 in
Package Type Bulk
Environmental Standards
ENERGY STAR Qualified Yes
Manufacturer Warranty
Service & Support 3 years warranty
Service & Support Details Limited warranty - 3 years
