Special Order
Ships in 1-2 weeks
Condition: New
| Main Specifications |

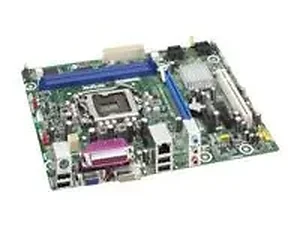

| Product Description | Intel Desktop Board DH61CR Classic Series - motherboard - micro ATX - LGA1155 Socket - H61 |
| Packaged Quantity | 10 (specifications are for single item) |
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel H61 Express |
| Processor Socket | 1 x LGA1155 Socket |
| Compatible Processors | Core i5, Core i3, Core i7 |
| Max Supported Memory | 8 GB |
| RAM Supported | 2 DIMM slots - DDR3 SDRAM , non-ECC , unbuffered |
| Storage Ports | 4 x SATA-300 |
| USB / FireWire Ports | 4 x Hi-Speed USB + (6 x Hi-Speed USB via headers) |
| Graphics | Intel HD Graphics |
| Audio | HD Audio (6-channel) |
| LAN | Gigabit Ethernet |
| Microsoft Certification | Compatible with Windows 7 |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | 3 years warranty |
| General | |
| Packaged Quantity | 10 (specifications are for single item) |
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel H61 Express |
| Processor Socket | LGA1155 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Core i5, Core i3, Core i7 |
| Memory | |
| Max Supported Memory | 8 GB |
| Supported RAM Technology | DDR3 SDRAM |
| Supported RAM Speed | 1333 MHz, 1066 MHz, 800 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Supported RAM (Registered or Buffered) | Unbuffered |
| RAM Features | Dual channel memory architecture |
| Graphics | |
| Graphics Controller | Intel HD Graphics |
| Audio | |
| Type | HD Audio (6-channel) |
| Audio Codec | Realtek ALC892 |
| Compliant Standards | High Definition Audio |
| LAN | |
| Network Controller | Intel 82579V |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slot(s) | 1 x processor - LGA1155 Socket 2 x memory - DIMM 240-pin 1 x PCI Express 2.0 x16 2 x PCI Express 2.0 x1 1 x PCI |
| Storage Interfaces | Serial ATA-300 - connector(s): 4 x 7pin Serial ATA - 4 device(s) |
| Interfaces | 1 x keyboard / mouse - generic - 6 pin mini-DIN (PS/2 style) 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) 1 x display / video - DVI-Digital - 24 pin digital DVI 4 x Hi-Speed USB - 4 pin USB Type A 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x audio - line-in - mini-phone stereo 3.5 mm 1 x audio - line-out - mini-phone stereo 3.5 mm 1 x microphone - input - mini-phone 3.5 mm 1 x parallel - IEEE 1284 (EPP/ECP) - 36 pin Centronics 6 x Hi-Speed USB ( internal ) |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
| Features | |
| BIOS Type | Intel |
| BIOS Features | Hyper-Threading Technology, ACPI 3.0b support, SMBIOS 2.5 support, Wfm support |
| Sleep / Wake Up | Keyboard wake up, RTC (real-time clock) wake up, suspend to RAM (STR), wake on LAN (WOL), mouse wake up, wake on PCI device, wake on USB port |
| Hardware Features | Chassis intrusion detection, Intel Turbo Boost Technology 2.0 |
| Miscellaneous | |
| Included Accessories | I/O back plate |
| Cables Included | 2 x Serial ATA cable 1 x DVI-VGA adapter |
| Software Included | Intel Express Installer |
| Compatible with Windows 7 | "Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
| Compliant Standards | CISPR 22 Class B, BSMI CNS 13438 Class B, EN 60950, IEC 60950, EN55024, WHQL, EN55022 Class B, CB, ICES-003 Class B, FCC Part 15 B, EMC, UL 1950 Third Edition, RoHS, Lead-Free, CSA C22.2 No. 950, AS/NZS 3548 Class B |
| Width | 9.6 in |
| Depth | 7.8 in |
| Package Type | Bulk |
| Environmental Standards | |
| ENERGY STAR Qualified | Yes |
| Manufacturer Warranty | |
| Service & Support | 3 years warranty |
| Service & Support Details | Limited warranty - 3 years |
