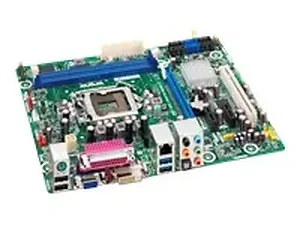

| Product Description | Intel Desktop Board DH61BE - Classic Series - motherboard - micro ATX - LGA1155 Socket - H61 |
| Packaged Quantity | 10 (specifications are for single item) |
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel H61 Express |
| Processor Socket | 1 x LGA1155 Socket |
| Compatible Processors | Core i5, Core i3, Core i7 |
| Max RAM Size | 16 GB |
| RAM Supported | 2 DIMM slots - DDR3 , non-ECC , unbuffered |
| Storage Ports | 2 x SATA-600, 4 x SATA-300 |
| USB / FireWire Ports | 2 x USB 3.0 + 2 x USB 2.0 + ( 8 x USB 2.0 via headers ) |
| Graphics | Intel HD Graphics |
| Audio | HD Audio (8-channel) |
| LAN | Gigabit Ethernet |
| Microsoft Certification | Compatible with Windows 7 |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | 3 years warranty |
| General |
| 10 (specifications are for single item) | | | Motherboard - micro ATX | | | Intel H61 Express | | | LGA1155 Socket | | | 1 | | | Core i5, Core i3, Core i7 | | |
| Supported RAM |
| 16 GB | | | DDR3 | | | 1333 MHz, 1066 MHz, 800 MHz | | | PC3-10600, PC3-8500, PC3-6400 | | | Non-ECC | | | Unbuffered | | | Dual channel memory architecture | | |
| Graphics |
| |
| Audio |
| HD Audio (8-channel) | | | Realtek ALC892 | | | High Definition Audio | | |
| LAN |
| Intel 82579V | | | Gigabit Ethernet | | |
| Expansion / Connectivity |
1 x CPU
2 x DIMM 240-pin
1 x PCIe 2.0 x16
2 x PCIe 2.0 x1
1 x PCI | | SATA-600 - connector(s): 2 x 7pin Serial ATA - 2 device(s)
SATA-300 - connector(s): 4 x 7pin Serial ATA - 4 device(s) | | 1 x PS/2 keyboard / mouse
1 x VGA
1 x DVI-D
2 x USB 2.0
1 x LAN (Gigabit Ethernet)
1 x audio line-in - mini-jack
1 x audio line-out - mini-jack
1 x microphone - mini-jack
1 x audio line-out (center/subwoofer) - mini-jack
1 x audio line-out (rear) - mini-jack
1 x TOSLINK
2 x USB 3.0 | | | 8 x USB 2.0 | | | 4-pin ATX12V connector, 24-pin main power connector | | |
| Features |
| Intel | | | Hyper-Threading Technology, ACPI 3.0b support, SMBIOS 2.5 support, Wfm support | | | Keyboard wake up, RTC (real-time clock) wake up, suspend to RAM (STR), wake on LAN (WOL), mouse wake up, wake on PCI device, wake on USB port | | | Chassis intrusion detection, Intel Turbo Boost Technology 2.0 | | |
| Miscellaneous |
| I/O back plate | | 2 x Serial ATA cable
1 x DVI-VGA adapter | | | Intel Express Installer | | | "Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. | | | CISPR 22 Class B, BSMI CNS 13438 Class B, EN 60950, IEC 60950, EN55024, EN55022 Class B, CB, ICES-003 Class B, FCC Part 15 B, EMC, UL 1950 Third Edition, RoHS, Lead-Free, CSA C22.2 No. 950, AS/NZS 3548 Class B | | | 9.6 in | | | 7.8 in | | | Bulk | | |
| Environmental Standards |
| |
| Manufacturer Warranty |
| 3 years warranty | | | Limited warranty - 3 years | | |
