Technical Specifications
_LA BLK 10PKMITX ATOM D425 DDR3 SATA AUD_

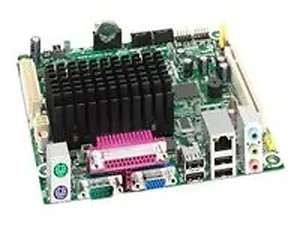

Intel Desktop Board D425KT - Innovation Series - motherboard - mini ITX / micro ATX - Intel Atom D425 - NM10 - LAN - onboard graphics - HD Audio (4-channel) (pack of 10 )
The Intel Desktop Board D425KT Innovation Series optimizes the performance while delivering access to technologies, value-added features, and easy integration. Entry-level desktop PCs represent a fundamental shift in system design - small, yet powerful enough to enable a big Internet experience for all users.
The two-chip layout enables lower power consumption and improved graphics performance for a better user experience. With this two-chip solution, the Intel Desktop Board D425KT saves 70-percent of its board layout size by adding additional features, enabling easier routing and better heat flow with the passive thermal solution.
The Intel Desktop Board D425KT provides additional flexibility and upgradability for the entry-level desktop PC usage model, delivering even greater performance and power efficiency. Supporting a USB solid-state drive keepout- zone design, the Intel Desktop Board D425KT is ideal for the diskless usage model by integrating with a standard USB connector.
The Intel Desktop Board D425KT provides enhanced features such asΎ/100Mbps integrated LAN, integrated 2+2-channel Intel high definition audio, and legacy features support with serial and parallel ports for emerging market needs.
The Intel Desktop Board D425KT also features the mini-ITX form factor. Backward- compatible with ATX and microATX, this form factor allows you to build green and energy-efficient solutions. This board powers simple, affordable, and Internet-centric computer designs in a compact size, allowing designers the ultimate in small chassis flexibility.
At an affordable price point, the Intel Desktop Board D425KT is not only suitable to serve as an entry-level desktop PC, but is ideal for innovative system usage models such as kiosks, call centers, home surveillance solutions, and entry-level home entertainment systems.
MAIN SPECIFICATIONS
Product Description Intel Desktop Board D425KT - Innovation Series - motherboard - mini ITX / micro ATX - Intel Atom D425 - NM10
Packaged Quantity 10 (specifications are for single item)
Product Type Motherboard - mini ITX / micro ATX
Processor Intel Atom D425 / 1.8 GHz
Chipset Type Intel NM10 Express
Max RAM Size 4 GB
RAM Supported 2 DIMM slots - DDR3 , non-ECC
Storage Ports 2 x SATA-300
USB / FireWire Ports 8 x USB 2.0 + ( 4 x USB 2.0 via headers )
Graphics Intel GMA 3150
Audio HD Audio (4-channel)
LAN Ethernet
Environmental Standards ENERGY STAR Qualified
Manufacturer Warranty 3 years warranty
EXTENDED SPECIFICATIONS
General
Packaged Quantity 10 (specifications are for single item)
Product Type Motherboard - mini ITX / micro ATX
Processor Intel Atom D425 / 1.8 GHz
Chipset Type Intel NM10 Express
Supported RAM
Max Size 4 GB
Technology DDR3
Bus Clock 1066 MHz, 800 MHz
Speed PC3-8500, PC3-6400
Data Integrity Check Non-ECC
Graphics
Graphics Controller Intel GMA 3150
Audio
Type HD Audio (4-channel)
Audio Codec Realtek ALC662
LAN
Network Controller Realtek RTL8105E
Network Interfaces Ethernet
Expansion / Connectivity
Expansion Slot(s) 2 x DIMM 240-pin 1 x PCI
Storage Interfaces SATA-300 - connector(s): 2 x 7pin Serial ATA - 2 device(s)
Interfaces 8 x USB 2.0 1 x LAN 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x VGA 2 x PS/2 keyboard / mouse 1 x serial 1 x parallel
Internal Interfaces 4 x USB 2.0
Features
BIOS Type Intel
BIOS Features ACPI support, rapid BIOS boot, WfM 2.0 support
Hardware Monitoring CPU core temperature, chassis temperature, chassis fan tachometer, system voltage
Sleep / Wake Up Keyboard wake up, suspend to RAM (STR), wake on LAN (WOL), mouse wake up, wake on USB port
Miscellaneous
Included Accessories I/O back plate
Software Included Drivers & utilities
Compliant Standards VCCI, EN55022, ICES-003, EN55024, CISPR 22, EMC, RoHS, FCC CFR47 PartΓ, UL 60950-1, IEC 60950-1, EN 60950-1, BSMI CNS 13438, CSA C22.2 No.-1
Width 6.7 in
Depth 6.7 in
Package Type Bulk
Environmental Standards
ENERGY STAR Qualified Yes
Manufacturer Warranty
Service & Support 3 years warranty
Service & Support Details Limited warranty - 3 years
